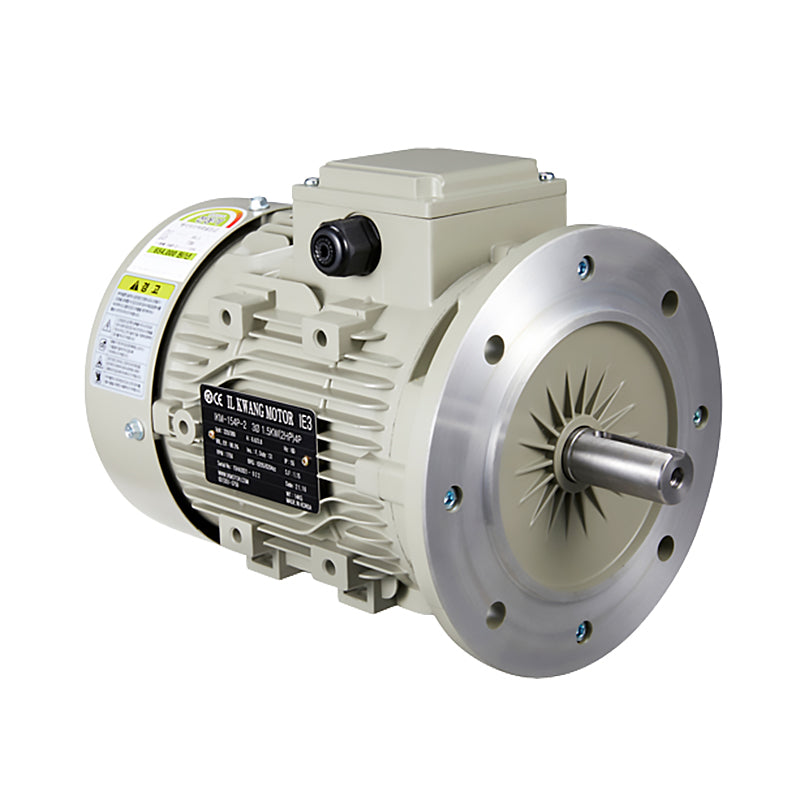

IK ELECTRIC IEC 132 Frame Aluminum Metric Motor, B35 Horizontal Vertical , 3-Phase, 10hp, 60 Hz, 220V/380V, 3600 RPM, TEFC
  • IK ELECTRIC IEC 132 Frame Aluminum Metric Motor, B35 Horizontal Vertical , 3-Phase, 10hp, 60 Hz, 220V/380V, 3600 RPM, TEFC
IK ELECTRIC IEC 132 Frame Aluminum Metric Motor, B35 Horizontal Vertical , 3-Phase, 10hp, 60 Hz, 220V/380V, 3600 RPM, TEFC

IK ELECTRIC IEC 132 Frame Aluminum Metric Motor, B35 Horizontal Vertical , 3-Phase, 10hp, 60 Hz, 220V/380V, 3600 RPM, TEFC

Brand: IK Electric
SKU: B35IE375kW10HP2P
Availability: In stock
Request for Quote

Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B35 Horizontal Vertical type

Model Number: IE3, 3Φ  7.5Kw (10HP)

RPM : 3,600

Pole : 2

Voltage : 220V/380V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 132 frame single-phase IEC metric general purpose AC motors have a 38mm diameter, 80mm length shaft whose center is 132mm above the base mounting surface. IEC132 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B35 Horizontal Vertical Type IK Hydraulic Unit Motor?

? Condenser Running

? 3-Phase TEFC Standard Motor

Rigid and Durtors

? Condenser Running
? Condenser Starting & Running

?

POWER
3-Phase, AC(220V/380V), 60Hz

Product Specifications

Dimensional drawing

IK

Frame Output Dimension(mm) Bearings
Size (kW) Overall DE Shaft extension Base
132S 2P S(Hole) PCD M N H C HA LA L X T D E F FA G A B AB BA K1 K2 DE ODE
7.5 15 265 230 300 132 89 294 312 473 263 4 38 80 10 65 5 215 178 248 215 13 15 6208ZZ 6207ZZ
