Hydraulic Hose
Hydraulic hoses carry pressurized oil between the pump, valves and cylinders on a machine tool's hydraulic unit. A worn or leaking hose costs you oil, makes a mess and can fail without warning, so it's worth replacing before it bursts.
-
SAE 100R2 AT, DIN EN 853 2SN (Parts No. 102-24)2 WIRE BRAID HOSE / No Skive Type Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air...Regular price $1.44 USDRegular priceUnit price per
-
SAE 100R1 AT, DIN EN 853 1SN (Parts No. 101-12)1 WIRE BRAID HOSE / NO SKIVE TYPE Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air...Regular price $0.77 USDRegular priceUnit price per
-

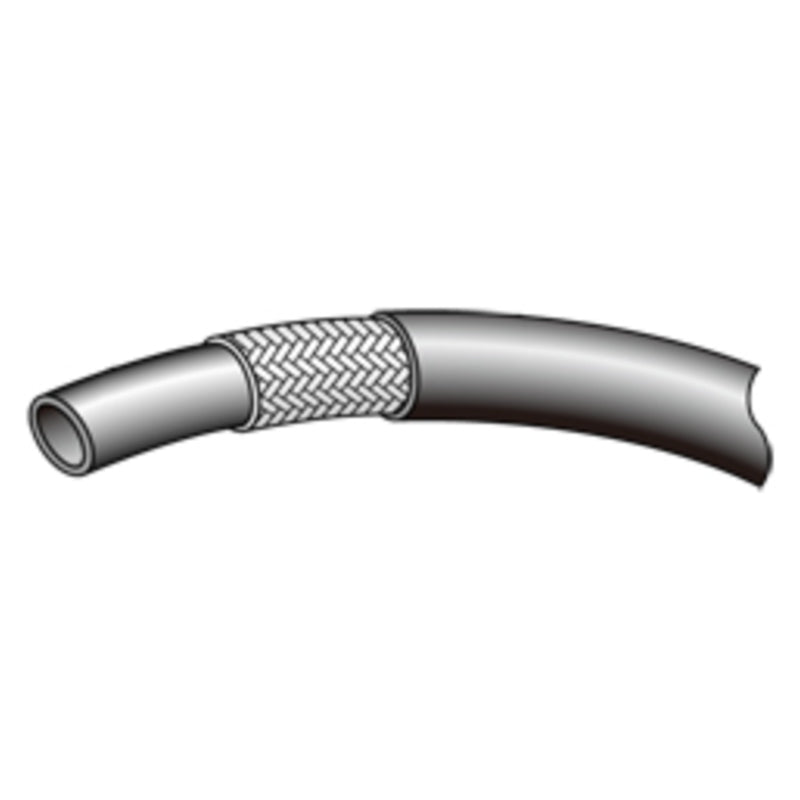

Nitta 3130 Series (3130-02)Excellent oil and chemical durability Reusable Coupling can be used Inner tubeNylon Core TubeReinforcementSynthetic Fiber ReinForcement BraidOuter coverPolyurethane CoverAppropriate fluidmineral general operating oil Range of temperature -40℃ ~ +100℃ (-40℉ ~ + 212℉) Hose Specification Part No. Size Max Operating (Mpa)...Regular price $0.31 USDRegular priceUnit price per
-
SAE 100R2 AT, DIN EN 853 2SN (Parts No. 102-20)2 WIRE BRAID HOSE / No Skive Type Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air...Regular price $1.80 USDRegular priceUnit price per
-
Compact Type Hose (Parts No. 1C1-08)1 WIRE BRAID HOSE Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air or gas application, external cover shall be PIN-PRICKED...Regular price $0.46 USDRegular priceUnit price per
-
Compact Type Hose (Parts No. 1C1-06)1 WIRE BRAID HOSE Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air or gas application, external cover shall be PIN-PRICKED...Regular price $0.36 USDRegular priceUnit price per
-
Compact Type Hose (Parts No. 1C1-04)1 WIRE BRAID HOSE Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air or gas application, external cover shall be PIN-PRICKED...Regular price $0.28 USDRegular priceUnit price per
-
SAE 100R1 AT, DIN EN 853 1SN (Parts No. 101-16)1 WIRE BRAID HOSE / NO SKIVE TYPE Inner tubeHYDRAULIC OIL RESISTANT SYNTHETIC RUBBERReinforcementONE HIGH TENSILE STEEL WIRE BRAIDOuter coverOIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBERApplicationFOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT※ For air...Regular price $1.10 USDRegular priceUnit price per
What we stock
- Inside diameters: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4 and 1-1/2 inch
- Construction: SAE 100R2AT / DIN EN 853 2SN two-wire braid hose
- Working pressure: listed on each product, from about 1,280 psi on the largest size to 2,900 psi on 1/8 inch
Ordering the right hose
Match the inside diameter, the fitting type and thread on both ends, and the overall length. Many Asian-built machines use JIS 30° flare fittings, which are not the same as JIC 37°. If you're unsure, send us a photo of both fittings and the old hose. Call 847-466-5459.
