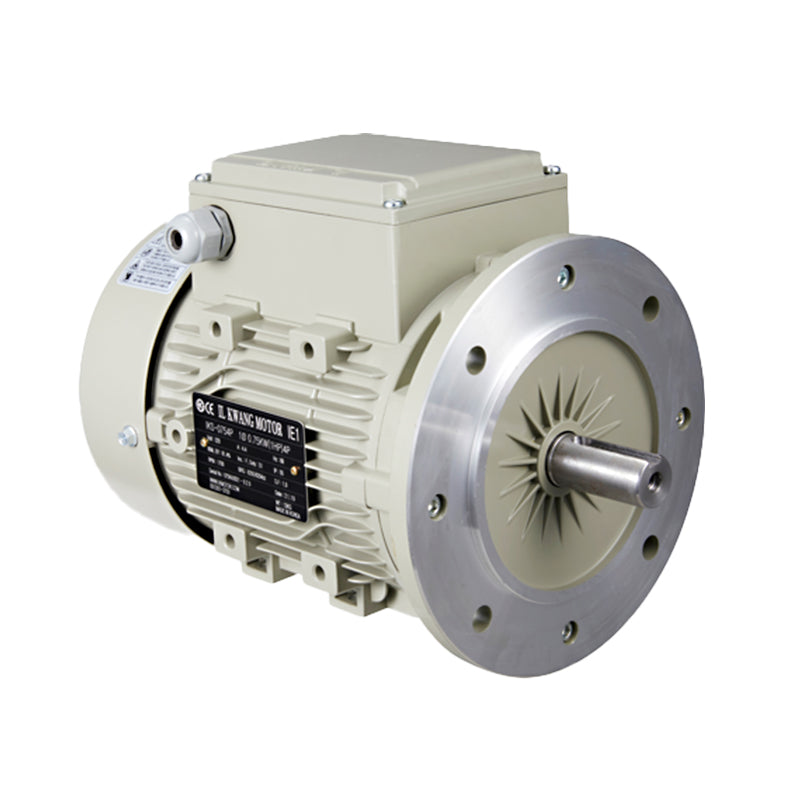

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B5 Vertical, 3-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
Brand: IK Electric
SKU:
B5IE315kW02HP4P
Availability:
In stock
Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor
Type: B5 Vertical type
Model Number: IE3, 1Φ 1.5Kw (2HP) 4P 60Hz
RPM : 1,800
Pole : 4
Voltage : 220V
Hertz : 60 Hz
IP rating : 55
Manufacturer : IK ELECTRIC
UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715
Product Description
IEC 90 frame 3-phase IEC metric general purpose AC motors have a 24mm diameter, 50mm length. IEC90 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.
B5 Vertical Type IK Hydraulic Unit Motor?
? Condenser Running
? Single-Phase TEFC Standard Motor
Rigid and Durtors
? Condenser Running
? Condenser Starting & Running
?
POWER
Single Phase, AC(220V), 60Hz
Product Specifications
Dimensional drawing
| Frame | Output | Dimension(mm) | Bearings | |||||||||||||
| Size | (kW) | Overall | DE Shaft extension | |||||||||||||
| 90L | 4P | S(Hole) | PCD | M | N | HA | L | X | T | D | E | F | FA | G | DE | ODE |
| 1.5 | 12 | 165 | 130 | 200 | 228 | 234 | 180 | 4 | 24 | 50 | 8 | 45 | 4 | 6205ZZ | 6204ZZ | |
Brand
IK Electric
Availability
In Stock
Estimated Delivery
28 Days
