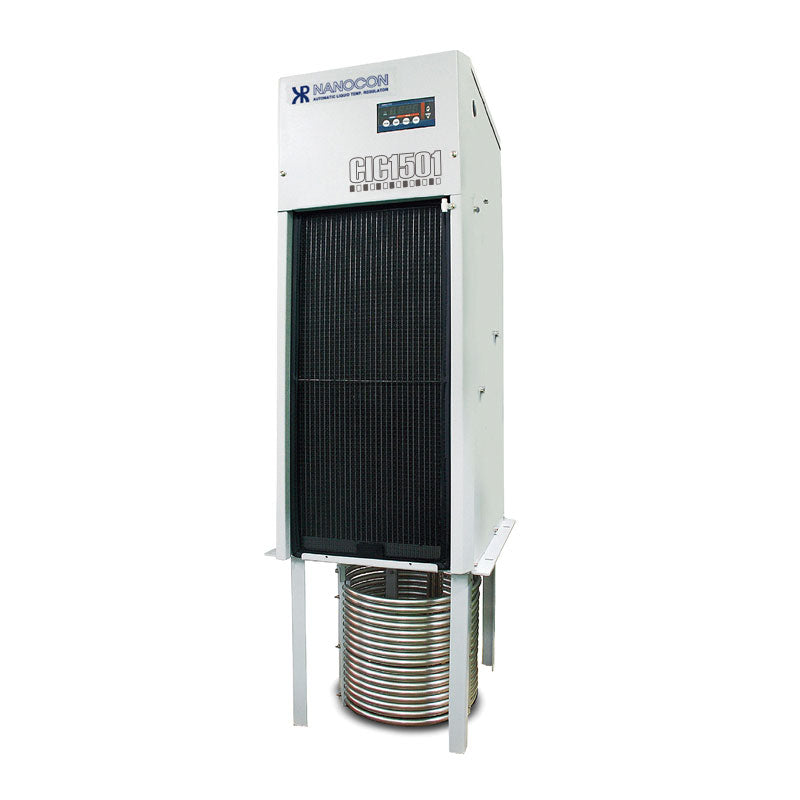

Kwangrim NANOCON Coolant Chiller CIC 1501
  • Kwangrim NANOCON Coolant Chiller CIC 1501
Kwangrim NANOCON Coolant Chiller CIC 1501

Kwangrim NANOCON Coolant Chiller CIC 1501

Brand: Kwangrim
SKU: CIC-1501
Availability: In stock
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Kwangrim Coolant Chiller CIC 1501E-C

Manufacturer: Kwangrim

Cooling Capacity: 4,830/5,810 (W) (50/60 Hz)

Compatible Machine Models : Doosan,DN Solutions, WIA, FFGDMC

Cross-Compatible Brands & Models

Airmajor AI-600PH Hydtec HKCC-150? Mastertech MSCC-2000F WooriTech OC-202CDA

Product Description

Kwangrim Coolant Chiller CIC 1501E-C is the High precision temperature control deposition-type coolant chiller

The CIC series coolant chillers use refrigerant-type heat exchange to maximize the heat exchange rate and efficiency, controlling coolant temperature. The SUS coil is made from rust resistant stainless steel. The CIC coolant chiller series makes it easy to control the temperature range whether the machine is lightly or heavily loaded.

CIC 1501E-C Coolant Chiller Series Options

STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.

Heater: With heater attached, warning-up time for a machine is reduced.

Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.

Tank: Tank can be attached with various volume selection.

CIC

NANOCON Drawings

CIC

Product Specifications

Specifications

Kwangrim Coolant Chiller CIC 1501E-C
Dimension 445 x 510 x 1335 (W x D x H)
External Color BLACK
Cooling Capacity

4830/5810 (W) (50/60 Hz)
Impressed Power Source

AC200V 50 / 60Hz, AC220V / 60Hz
Power Capacity 19.0A / 7.3KVA
Compressor Capacity 2475W
Condenser Air cooling (ALUMINUM CONDENSER)
FAN MOTOR 100W x 2
Heat Exchanger Plate Cooler
Usage Temperature 5 ~ 45 ?
Temp. Control

E : ?1 ? ~ 2 ? (Does not include transient deviation)
Refrigerant R407C
Temp. Controller DIGITAL PID Controlled Controller

Chiller Dimension Drawings

CIC

Brand Kwangrim
Availability In Stock
Estimated Delivery 60 Days
