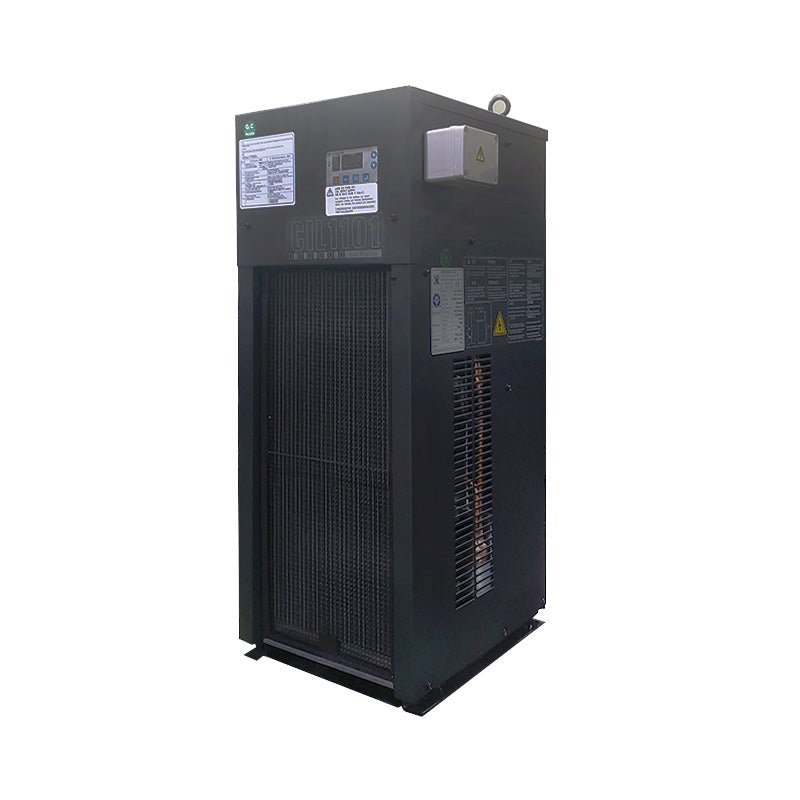

Kwangrim NANOCON Oil Chiller CIL 1101A-C
Brand: Kwangrim
SKU:
CIL-1101A-C
Availability:
In stock
$5,104.00
Kwangrim NANOCON Oil Chiller CIL 1101A-C
$5,104.00
Cross-Compatible Brands & Models
|
Airmjor AO-450P |
Daikin AKZ439 |
Harbor HBO-900PS |
Hydtec HKC-110 |
Kanto Seiki C750 | Kanto Seiki CL1100 |
|
Kanto Seiki MLSA-07 |
Kanto Seiki MLHA-07 |
Kanto Seiki MLLA-07 |
Kanto Seiki MLSA-11 |
Kanto Seiki MLHA-11 | Kaukan KO-18PS |
|
MAC 110BSC-FR |
MAC 110BSC-FDX-SA |
MAC 110BSCT-FR |
MAC 110BSCT-FDX-SA |
MAC 110-CNP-FR-0T-2B1 | MAC 110BSCT-FR-OKE |
|
Matsushita NU-YC75 |
Wexten Point CO-12 |
Product Description
Kwangrim Oil Chiller CIL 1101A-C is the high accuracy liquid temperature controlling CIL Series chiller covers light to heavy loads.
With a gas-by-pass control, CIL chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type is equipped with a dual valve/gas-by-pass PID control with +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with a water pump for customers.
CIL 1101A-C Oil Chiller Series Options
STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.
Heater: With heater attached, warning-up time for a machine is reduced.
Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.
Tank: Tank can be attached with various volume selection.
NANOCON Drawings
Product Specifications
Specifications
|
Kwangrim Oil Chiller CIL 1101A-C |
|
|---|---|
| Dimension | 380 x 475 x 935 (W x D x H) |
| External Color | BLACK |
| Cooling Capacity |
3820/4500 (W) (50/60 Hz) |
| Impressed Power Source |
AC200V 50 / 60Hz, AC220V / 60Hz |
| Power Capacity | 15.0A / 5.8KVA |
| Compressor Capacity | 1390W |
| Condenser | Air cooling (ALUMINUM CONDENSER) |
| FAN MOTOR | 100W x 2 |
| Heat Exchanger | Plate Cooler |
| Circulating Oil | 24.3 / 29.1 L/min (50/60 Hz) |
| Max.Pressure | 0.5 Mpa |
|
Connecting Piping |
3/4 x 3/4 (In x out) (RC,PT) |
| Usage Temperature | 5 ~ 45 ? |
| Temp. Control |
A type : ?0.1 ? ~ 0.2 ? (Does not include transient deviation) |
| Refrigerant | R410A |
| Temp. Controller | DIGITAL PID Controlled Controller |
Chiller Dimension Drawings
