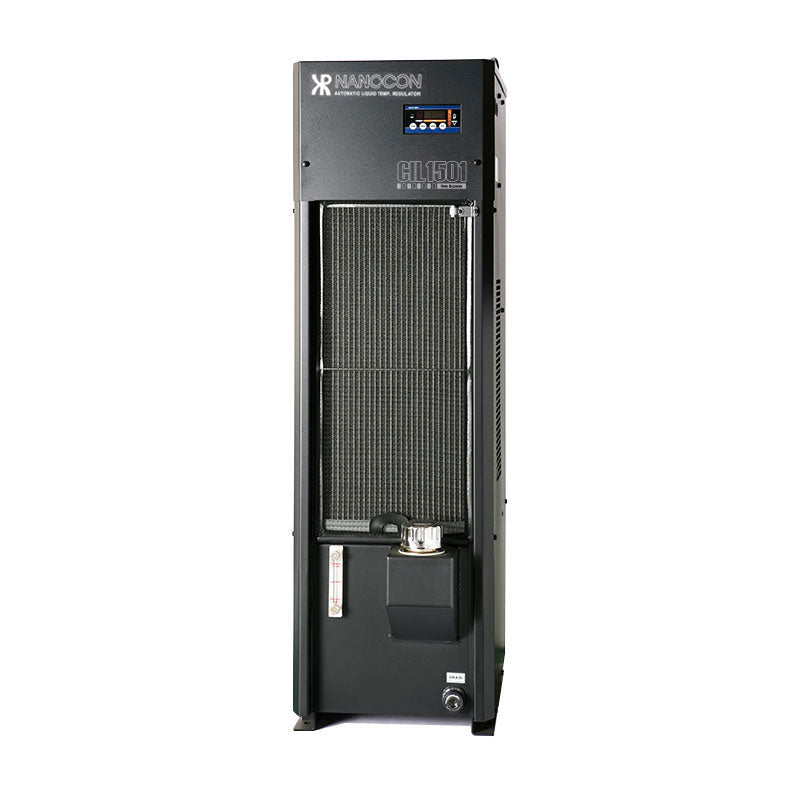

Kwangrim Oil Chiller CIL 1501A-CT
  • Kwangrim Oil Chiller CIL 1501A-CT
Kwangrim Oil Chiller CIL 1501A-CT

Kwangrim Oil Chiller CIL 1501A-CT

Brand: Kwangrim
SKU: CIL-1501A-CT
Availability: In stock
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Kwangrim Oil Chiller CIL 1501A-CT

Manufacturer : Kwangrim

Cooling Capacity: 4,830/5,810 (W) (50/60 Hz)

Compatible Machine Models : Doosan, DN Solutions ,WIA, FFGDMC

* Step-Controller is applied in this model

Cross-Compatible Brands & Models

Airmajor AO-600PT Daikin AKZ569T Harbor HBO-1000PTS Hydtec HKC-150-T Kanto Seiki MRSD-11 Kanto Seiki KTVM-11
Kanto Seiki KTC-11 Kanto Seiki KTC-15 MAC 150BSCT-FDXS-DPN-OKE MAC 150BSCT-FR MAC-150BSCT-FDX-SA MAC-110BSCT-FR-O-0200 (Std)
MAC-110BSCT-FR-O-0200-CE (CE) Mastertech MSOC-2500F Matsushita NU-YS110BM Matsushita NU-YS150BM Matsushita NU-YES152BMA01 Samick SIOC-1500CT
SamwhaPMI KITS-200AT WooriTech OC-302HDA

Product Description

Kwangrim Oil Chiller CIL 1501A-CT The high accuracy liquid temperature controlling CIL Series oil chiller covers light to heavy loading.

With gas-by-pass type control, CIL oil chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type with the dual valve/gas-by-pass PID control made +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with water pump for customers.

CIL 1501A-CT Oil Chiller Series Options

STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.

Heater: With heater attached, warning-up time for a machine is reduced.

Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.

Tank: Tank can be attached with various volume selection.

CIL

NANOCON Drawings

CIL

Product Specifications

Specifications

Kwangrim Oil Chiller CIL 1501A-CT
Dimension 350 x 510 x 1552 (W x D x H)
External Color BLACK
Cooling Capacity

4830/5800 (W) (50/60 Hz)
Impressed Power Source

AC200V 50 / 60Hz, AC220V / 60Hz
Power Capacity 19.0A / 7.3KVA
Compressor Capacity 2475W
Condenser Air cooling (ALUMINUM CONDENSER)
FAN MOTOR 100W x 2
Heat Exchanger Plate Cooler
Circulating Oil 30 / 36 L/min (50/60 Hz)
Max.Pressure 0.6 / 0.5 Mpa

Connecting Piping

3/4 x 3/4 (In x out) (RC,PT)
Usage Temperature 5 ~ 45 ?
Temp. Control

A? type : ?0.1 ? ~ 0.2 ? (Does not include transient deviation)
Refrigerant R410A
Tank Capacity 60 Liter
Temp. Controller DIGITAL PID Controlled Controller

Chiller Dimension Drawings

400206-00305C-1501A-CT-dwg

Brand Kwangrim
Availability In Stock
Estimated Delivery 15 Days
