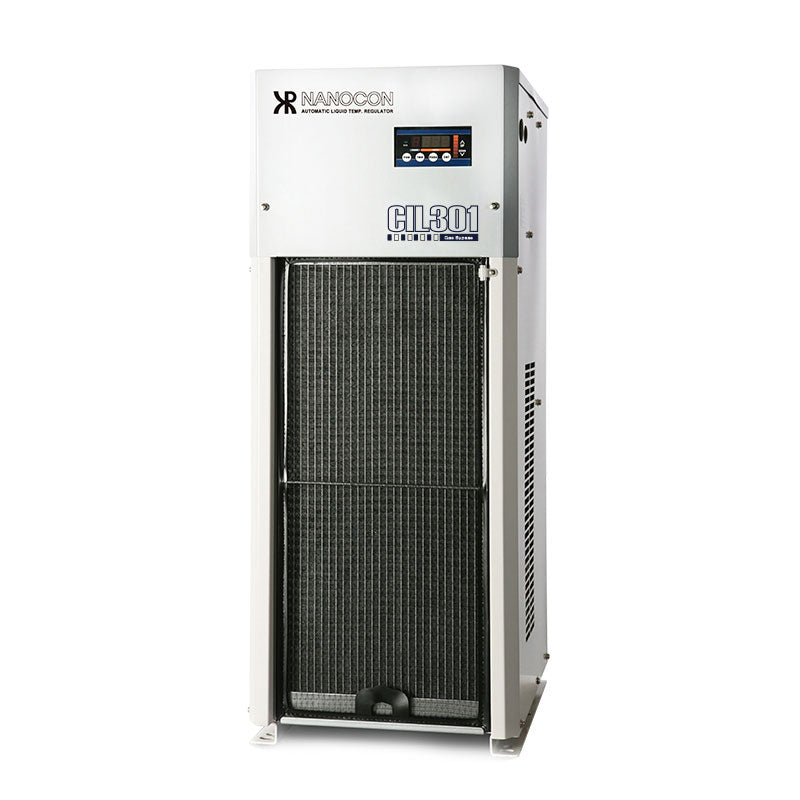

Kwangrim NANOCON Oil Chiller CIL 301A
  • Kwangrim NANOCON Oil Chiller CIL 301A
Kwangrim NANOCON Oil Chiller CIL 301A-C

Kwangrim NANOCON Oil Chiller CIL 301A-C

Brand: Kwangrim
SKU: CIL-301A-C
Availability: In stock
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Kwangrim Oil Chiller CIL 301A-C (CIL 300A-C)

Manufacturer : Kwangrim

Cooling Capacity : 1,040/1,170 (W) (50/60 Hz)

Compatible Machine Models : Doosan, DN Solutions, WIA, FFGDMC

Cross-Compatible Brands & Models

Daikin AKZ149 Harbor HBO-400PS Hydtec HKC-30 Kantoseiki CL175 Kantoseiki? CL300 Kantoseiki , MLSA-03
Kantoseiki MLHA-03 Kantoseiki MLLA-03 Kantoseiki MLD 5 Kantoseiki MLD 5 Kantoseiki MPD 5 Kantoseiki MRD
KauKan KO-4PS Matsushita NU-YC30 Wexten Point CO-04

Product Description

Kwangrim Oil Chiller CIL 301A-C is The high accuracy liquid temperature controlling CIL Series chiller covers light to heavy loading.

With a gas-by-pass control, CIL chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type is equipped with a dual valve/gas-by-pass PID control with +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with a water pump for customers.

CIL301A-C Oil Chiller Series Options

STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.

Heater: With heater attached, warning-up time for a machine is reduced.

Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.

Tank: Tank can be attached with various volume selection.

CIL

NANOCON Drawings

CIL

Product Specifications

Specifications

Kwangrim Oil Chiller CIL 301A-C
Dimension 350 x 450 x 675 (W x D x H)
External Color BLACK
Cooling Capacity

1160/1390 (W) (50/60 Hz)
Impressed Power Source

AC200V 50 / 60Hz, AC220V / 60Hz
Power Capacity 6.5A / 2.5KVA
Compressor Capacity 595W
Condenser Air cooling (ALUMINUM CONDENSER)
FAN MOTOR 100W
Heat Exchanger Plate Cooler
Circulating Oil 12.6 / 15.1 L/min (50/60 Hz)
Max.Pressure 0.5 Mpa

Connecting Piping

1/2?x 1/2?(In x out) (RC,PT)
Usage Temperature 5 ~ 45 ?
Temp. Control

A type : ?0.1 ? ~ 0.2 ? (Does not include transient deviation)
Refrigerant R407C
Temp. Controller DIGITAL PID Controlled Controller

Chiller Dimension Drawings

R90695C_CIL300A-C-dwg

Brand Kwangrim
Availability In Stock
