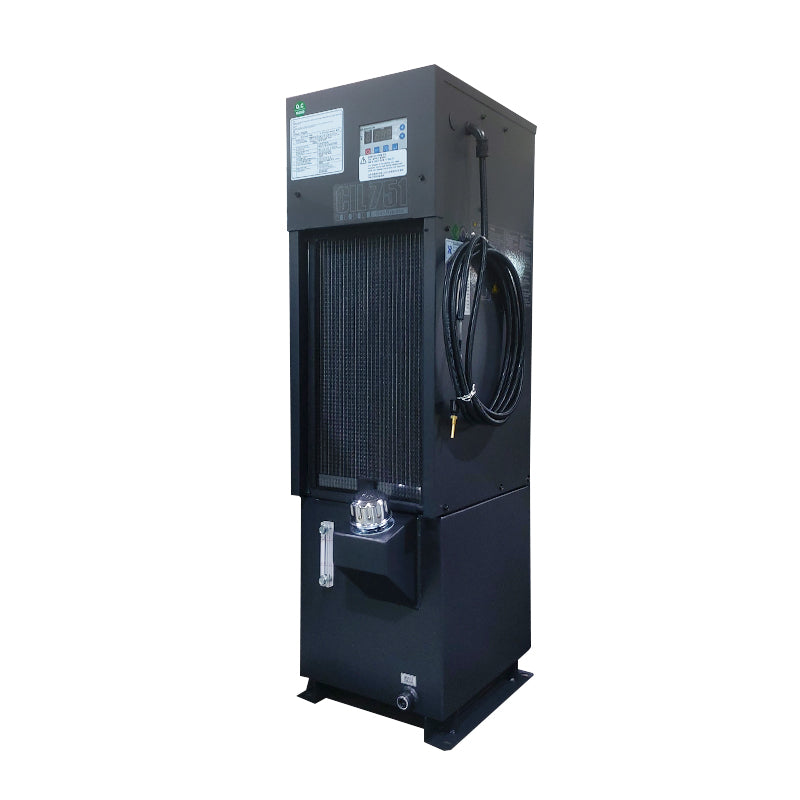

Kwangrim Oil Chiller CIL 751A-CT
Brand: Kwangrim
SKU:
CIL-751A-CT
Availability:
In stock
Kwangrim Oil Chiller CIL 751A-CT
Manufacturer : Kwangrim
Cooling Capacity: 2,900/3,480 (W) (50/60 Hz)
Compatible Machine Models : Doosan, DN Solutions, WIA, FFGDMC
Cross-Compatible Brands & Models
| Airmajor AO-350PT | Daikin AKZ329T | Harbor HBO-750PTS(B2) | Hydtec HKC-75-T | Kanto Seiki? MLSB-05 | Kanto Seiki MPSB-05 |
| Kanto Seiki KTVM-5 | Kanto Seiki MLD 7.5 | Kanto Seiki MPD 7.5 | Kanto Seiki MPDC-05-N-A | Kanto Seiki MRD 7.5 | Kanto Seiki KTC-5 |
| Kanto Seiki KTC-7.5 | Kanto Seiki KTVM-6A-LM1A | KauKan KO-8TPS | MAC 50BSCT-FR | MAC 50BSCT-FDX-SA | MAC 75BSCT-FR |
| MAC 75BSCT-FDX-SA | MAC 75CFR-1803 | MAC 50SP-FR-0T-8 | MAC 60CP-FR-0T-1 | MAC 60BFRF-A02 | Mastertech MSOC-1000F |
| Matsushita NU-YEC062BMC01 | Samick SIOC-750CT | SamwhaPMI KITS-100AT | WooriTech OC-102HDA | ||
Product Description
Kwangrim CIL 751C-T is The high accuracy liquid temperature controlling CIL Series oil chiller covers light to heavy loads.
With gas-by-pass type control, CIL oil chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type oil chillers feature a dual valve/gas-by-pass PID control made +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with water pump for customers.
CIL 751C-T Oil Chiller Series Options
STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.
Heater: With heater attached, warning-up time for a machine is reduced.
Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.
Tank: Tank can be attached with various volume selection.
NANOCON Drawings
Product Specifications
Specifications
|
Kwangrim Oil Chiller CIL 751A-CT |
|
|---|---|
| Dimension | 350 x 450 x 1033 (W x D x H) |
| External Color | BLACK |
| Cooling Capacity |
2900/3480 (W) (50/60 Hz) |
| Impressed Power Source |
AC200V 50 / 60Hz, AC220V / 60Hz |
| Power Capacity | 14.0A / 5.4KVA |
| Compressor Capacity | 920W |
| Condenser | Air cooling (ALUMINUM CONDENSER) |
| FAN MOTOR | 200W |
| Heat Exchanger | Plate Cooler |
| Circulating Oil | 18 / 21.6 L/min (50/60 Hz) |
| Max.Pressure | 0.5 Mpa |
|
Connecting Piping |
1/2 x 3/4 (In x out) (RC,PT) |
| Usage Temperature | 5 ~ 45 ? |
| Temp. Control |
A type: ?0.1 ? ~ 0.2 ? (Does not include transient deviation) |
| Refrigerant | R410A |
| Tank Capacity | 20 Liter / 40 Liter (Selectable) |
| Temp. Controller | DIGITAL PID Controlled Controller |
Chiller Dimension Drawings
