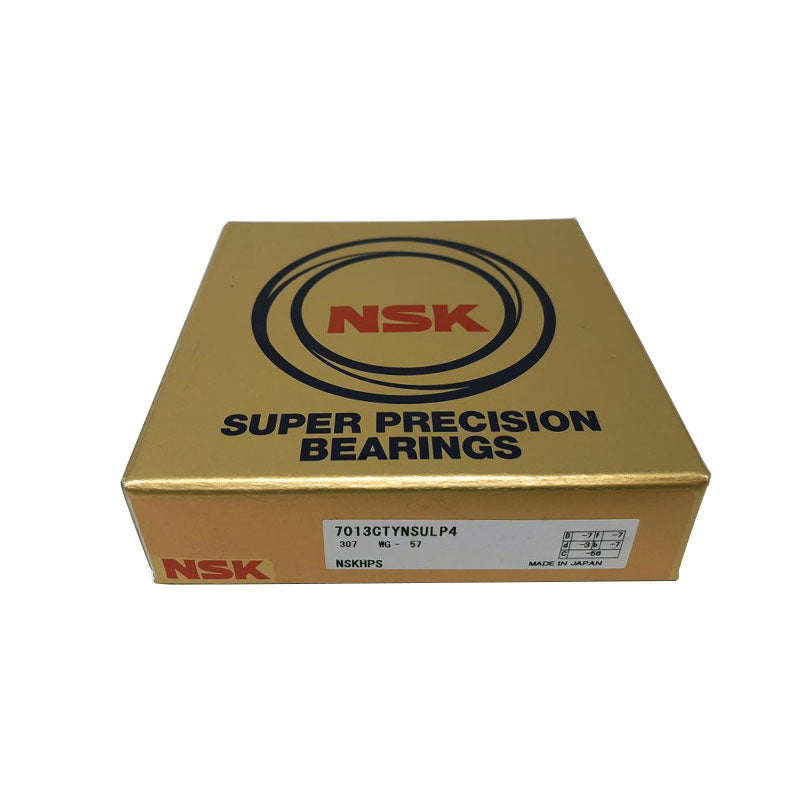

NSK Angular Contact Ball Bearing 7013CTYNSULP4
Brand: IndustryNest

Product Description
The NSK range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers.
These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.
Furthermore, since an axial component is generated when a radial load is applied,
these bearings are generally used in pairs, triple sets, quadruple sets, or multiple sets. NSK offers one of the most comprehensive ranges of angular contact ball bearings.?
Product Specifications
| Boundary Dimensions | |
| d | 65 mm |
| D | 90 mm |
| B | 13 mm |
| C | 13 mm |
| a | 16.9 mm |
| r min | 1 mm |
| r1 min | 0.6 mm |
| da min | 71 mm |
| Da max | 84 mm |
| ra max | 1 mm |
| Weight | 0.208 kg |
