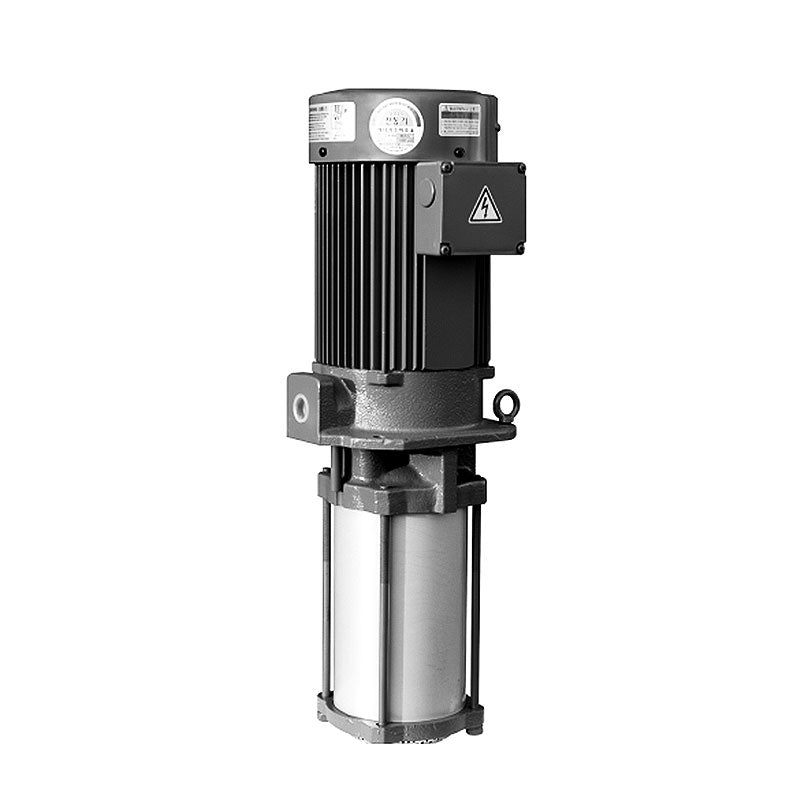

Aryung Coolant Pump ACP-5500HMFD 200V, high head multi-stage centrifugal pump for large high-precision machines
  • Aryung Coolant Pump ACP-5500HMFD 200V, high head multi-stage centrifugal pump for large high-precision machines
Aryung Coolant Pump ACP-5500HMFD 200V

Aryung Coolant Pump ACP-5500HMFD 200V

Brand: Aryung
SKU: ACP5500HMFD200V
Availability: In Stock (ships from Chicago in 1-2 business days)
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

A-Ryung Coolant Pump ACP-5500HMFD 200V

Part : Coolant Pump

Model Number : ACP- 5500HMFD 200V

Manufacturer : A-Ryung

Product Description

The ACP-HMFD series pumps are high-head, multi-staged centrifugal pumps designed for use on large machines with high precision and efficiency.

These pumps are engineered to prevent motor temperature from transferring to the pump, ensuring a constant oil temperature.

Product Specifications

Specifications
Type ACP-5500HMFD 200V
Pump Discharge Volume 20 /min
Head 145/200 m
In-let & Out-let 1 1/2 PS
Immersion Depth 470 mm
Motor Out-put 5500 W
Frequency Voltage 50/60 Hz
Voltage 200/380/415 V
Current 20.0/11.5/10.5 A
Weight 75 kg

External Dimensions

ACP-5500HMFD

Performance Range

5500HMFD

The liquid should be filled up to the limit lines indicated on the pump body. The maximum liquid level should be kept below 20 mm from the tank top to prevent dispersion. If the liquid level is too low, it can cause noise and reduce performance. The discharging volume varies with liquid viscosity. High viscosity increases motor heat; therefore, cutting oil viscosity should be under 32 cSt. This pump is low-head and cannot discharge if there is pipe resistance when a check valve is installed.

TYPE L L1 L2 L3 L4 TL R1 PE
5500HMFD 220V 470 33 352 38 405 893 180 PS 3/4
