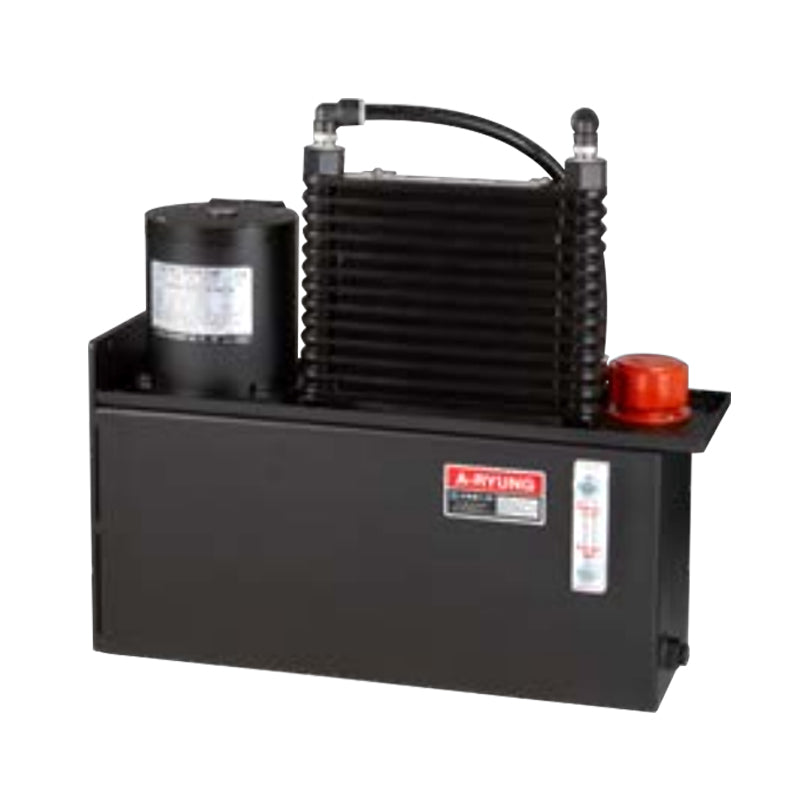

Aryung Fan Cooler Unit AFC-200-12MSFVB-T10

Aryung Fan Cooler Unit AFC-200-12MSFVB-T10

Brand: Aryung
SKU: AFC20012MSFVBT10
Availability: In Stock (ships from Chicago in 1-2 business days)
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Part : Fan Cooler Unit

Model : AFC-200-12MSFVB-T10

Manufacturer : A-Ryung

Product Description

Excellent heat exchange efficiency by applying a fan cooler and a small circulation pump as an air-cooled type.

Easy to use and compact in appearance, it is suitable for machine tools and various industrial machines.

Product Specifications

Pump Spec’

Type 1500 rpm (50Hz, 4p) 1800 rpm (60Hz, 4p) INLET OUTLET
Discharge INLET OUTLET
Volume
(ℓ/min)		 Max’ Pressure
(MPa)		 Discharge INLET OUTLET
Volume
(ℓ/min)		 Max’ Pressure
(MPa)
100W 200W 100W 200W
12MSFVB 3.7 0.5 0.5 4.5 0.5 0.5 PT 1/4” PT 1/4”
13MSFVB 6.7 0.5 8.1 0.5 PT 3/8” PT 3/8”

Motor Spec’

Motor Output
( W )		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Motor speed
(rpm)		 Phase
(Ø)		 Poles
(P)
100W 50/60 200 0.65 1430 3 4
60 220 0.6 1720
200W 50/60 200 1.3 1430 3 4
60 220 1.1 1710

Type Tank Capacity
( ℓ )		 Fan Motor
Motor Output Phase Frequency Voltage Current
AFC-100-12MSFVB-T10 10 48W 1 Ø 50/60 Hz 220~240V 0.22 A

External Dimensions

AFC-100-12MSFVB-T10
