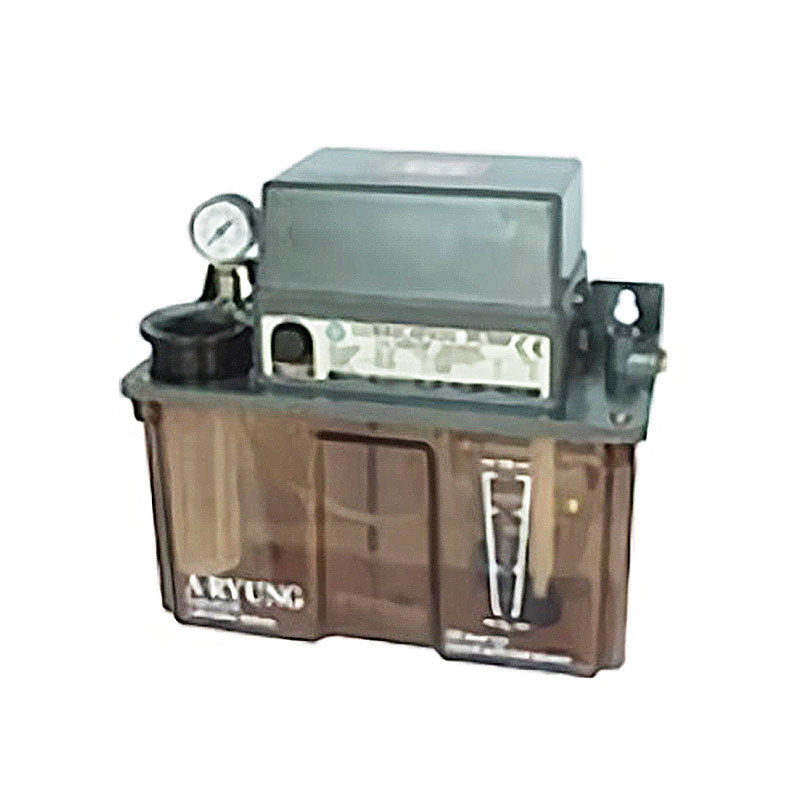

Aryung Lubrication Pump AMGP-01NS-T03-TY 110V
  • Aryung Lubrication Pump AMGP-01NS-T03-TY 110V
  • Aryung Lubrication Pump AMGP-01NS-T03-TY
Aryung Lubrication Pump AMGP-01NS-T03-TY

Aryung Lubrication Pump AMGP-01NS-T03-TY

Brand: Aryung
SKU: AMGP-01NS-T03-110V
Availability: In Stock (ships from Chicago in 1-2 business days)
$620.00
Voltage: 110V
Aryung Lubrication Pump AMGP-01NS-T03-TY
$620.00 USD
$620.00 USD
Voltage: 110V
Aryung Lubrication Pump AMGP-01NS-T03-TY 110V
Aryung Lubrication Pump AMGP-01NS-T03-TY
$620.00

Product Description

• The AMGP-01NS/025NS pump is a resistive and intermittent pump, using a measuring valve.

• This pump has a float switch and a pressure switch inside to check the oil level and connect the outside terminal on the main machine to monitor the working conditions.

• A feed button switch inside of the pump makes it easy to remove air and to operate the pump manually.

• This type is a kind of intermittent pump, so continuous operation should be prohibited

• This pump is mainly used for machine tools, printing, foods, injection machine, press and various industrial machine.

Product Specifications

Type

Discharge

 volume

Working

 pressure

Pressure

  range

Reservoir

 capacity

 Viscosity Outlet  PT

Net

  weight

 Motor  Output Phase Poles Frequency Rated   voltage Current
0NS-T03 125/150 cc/min 1.7 Mpa 0.2~1.7 Mpa 3.0 L 30~1000 cSt 1/8( Ø6) 4.0kg 25w 1Φ/2P 50/60 Hz 110V / 220V 1.8/0.8 A

Circuit Diagram & Electrical Connections

612AMGPNS02AR

External Dimensions

612AMGPNS02AR

Brand Aryung
Availability In Stock
