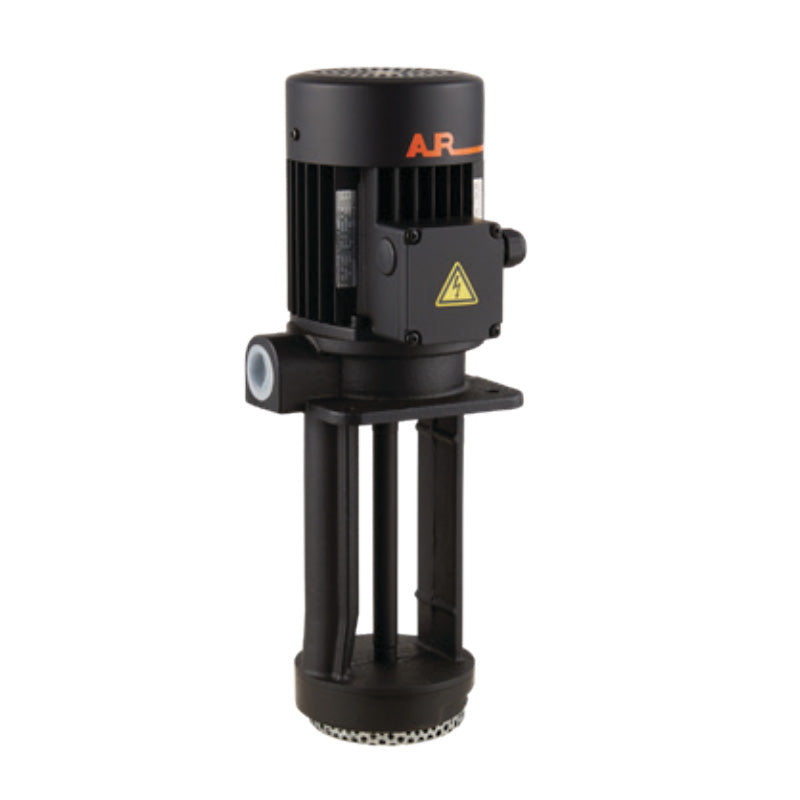

Aryung Coolant Pump ACP-400FS 250

Part : Aryung Coolant Pump

Manufacturer Model Number : ACP-400FS 250

Manufacturer : Aryung

Product Description

ACP-FS serise is used in machine tools needed higher lift-up than ACP-F type. lt has Little idle working trouble because of no mechanical seal. lt is compact design and widely used in general machine tools.

The decreasing suction friction and high efficiency is improved by setting inlet bottom.

Product Specifications

External Dimensions

Performance Range

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.
