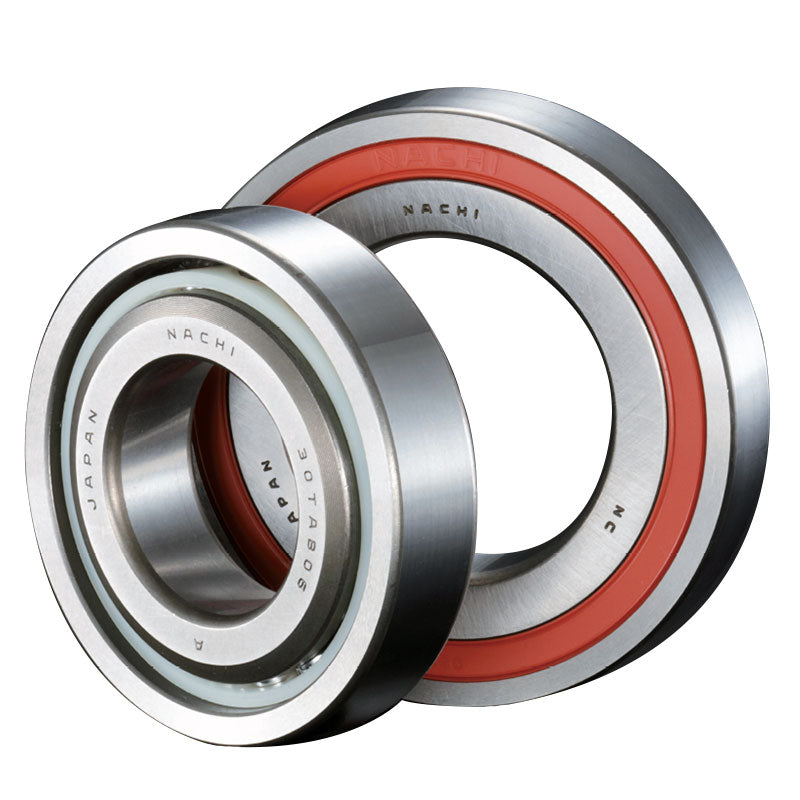

Nachi Support Bearing 25TAB06U with a resin cage and increased ball count for greater rigidity and efficient handling of radial and axial loads.
  • Nachi Support Bearing 25TAB06U with a resin cage and increased ball count for greater rigidity and efficient handling of radial and axial loads.

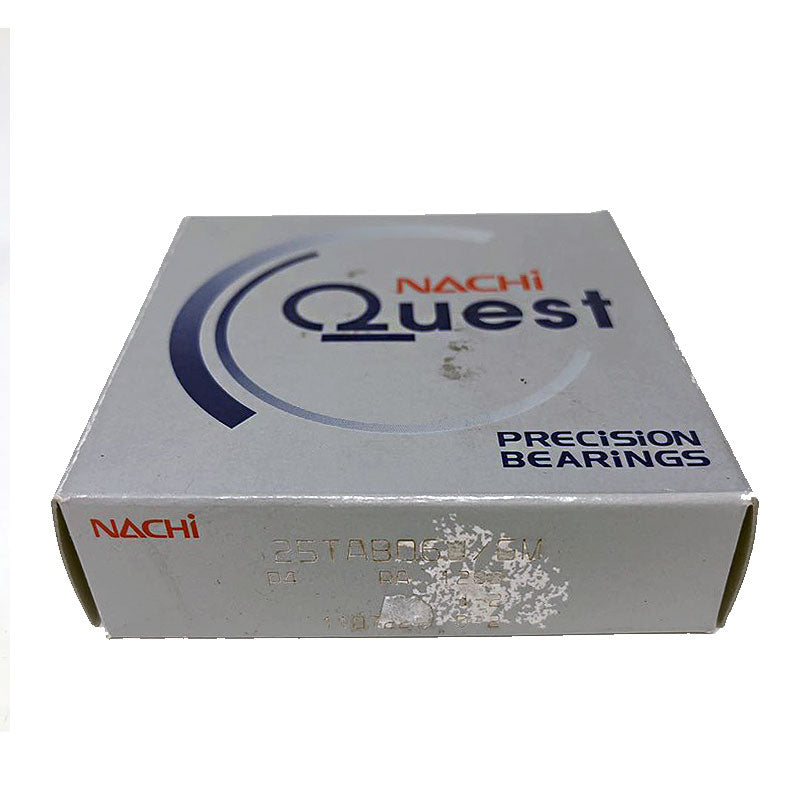

  • Packaging box for Nachi Support Bearing 25TAB06U, labeled as NACHI Quest Precision Bearings.
Nachi Support Bearing 25TAB06U

Nachi Support Bearing 25TAB06U

Brand: IndustryNest
SKU: 59825TAC6201NA
Availability: In stock
$76.50
Nachi Support Bearing 25TAB06U with a resin cage and increased ball count for greater rigidity and efficient handling of radial and axial loads.
Nachi Support Bearing 25TAB06U
$76.50

Product Description

? Resin cage and more balls than previous ball bearings for greater rigidity.

? Combination bearings are provided with preset preloads, eliminating the need for troublesome installation adjustment using shims and torque measurements.

? A contact angle of 60? and has the ability to handle radial and axial loads creates a compact bearing.

? The seal type provides a choice between contact seal and noncontact seal to suit specific applications.

Product Specifications

Specifications
Bearing No. 30TAB06
Boundary Dimensions d 30 mm
D 62 mm
2B 15 mm
r min 1 mm
r 1 min 0.6 mm
Basic Dynamic Load Rating (2) Ca (kN) Standard 29.9
Multi-tough 38
Basic Static Load Rating Cor (kN) 46.4

Product Drawing

Nachi

Brand IndustryNest
Availability In Stock
