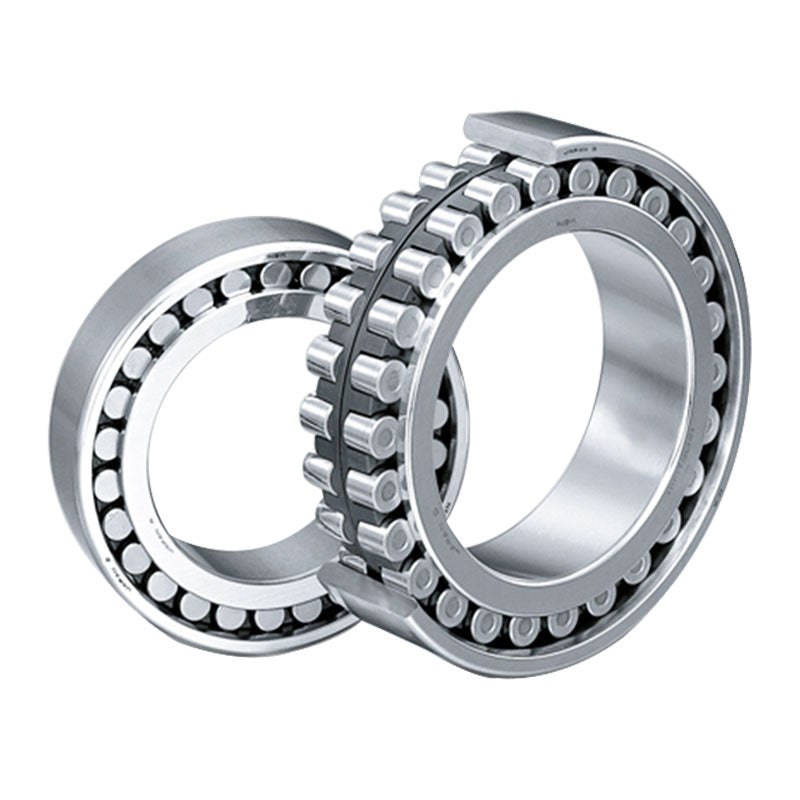

NSK Cylindrical Roller Bearing NN3080KE6CC9P4U214
Brand: IndustryNest
SKU:
1212T006
Availability:
In Stock (ships from Chicago in 1-2 business days)
Parts : Cylindrical Roller Bearing
Part Number : NN3080KE6CC9P4U214 (1212T006)
Dimensions : 400 mm x 600 mm x 148 mm
Manufacturer : NSK
Product Description
If the load on cylindrical roller bearings becomes too small during ioeration, slippage between the rollers and raceways occurs,
which may result in smearing. Especially with large bearings since the weight of the rollers and cafe is high.
If very small bearing loads are expected please consult with us for selection of the bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 400 mm |
| D | 600 mm | |
| B | 145 mm | |
| r min | 5 mm | |
| Fw | - | |
| Ew | 548 mm | |
| Basic Load Ratings | Cr | 2,090 kN |
| Cor | 4,300 kN | |
| Cr | 213,000 kgf | |
| Cor | 435,000 kgf | |
| Specifications | ||
| Abutment and Fillet Dimensions | da | 429 mm |
| d1a | 441 mm | |
| dc mic | - | |
| Da | 568 mm | |
| Ra max | 4 mm | |
| Mass | Approx. | 147 kg |
