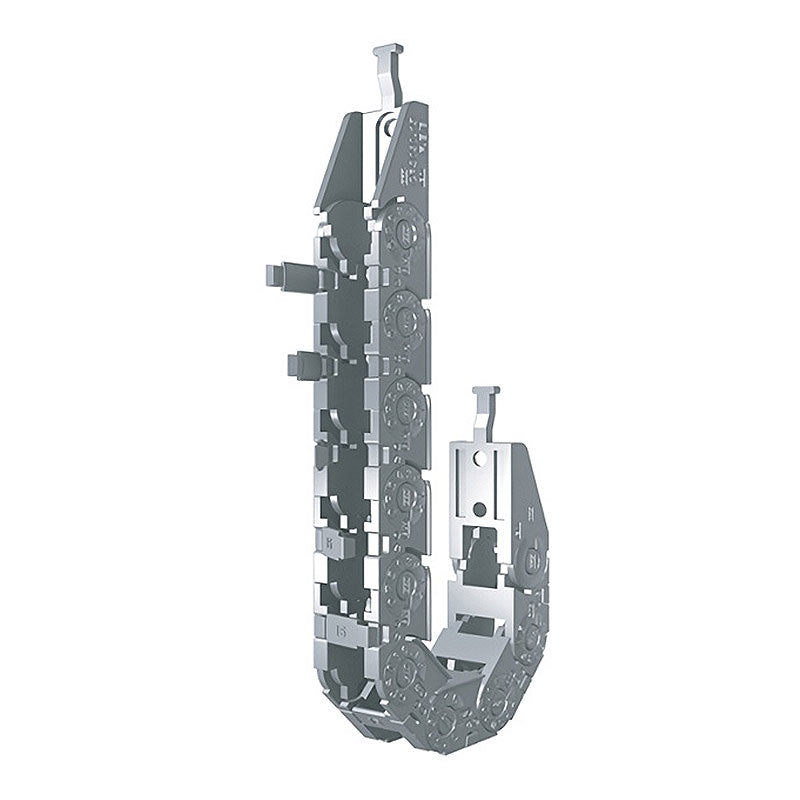

  • CP System Cable Chain CPS030.15.R48/B2-750L - Full View

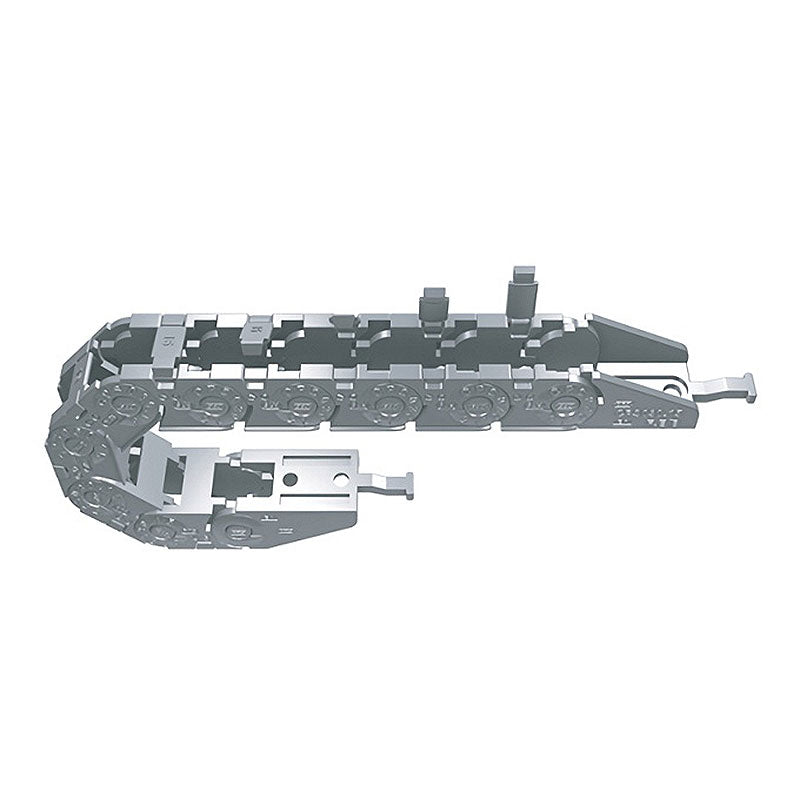

  • CP System Cable Chain - Side View of CPS030.15.R48/B2-750L

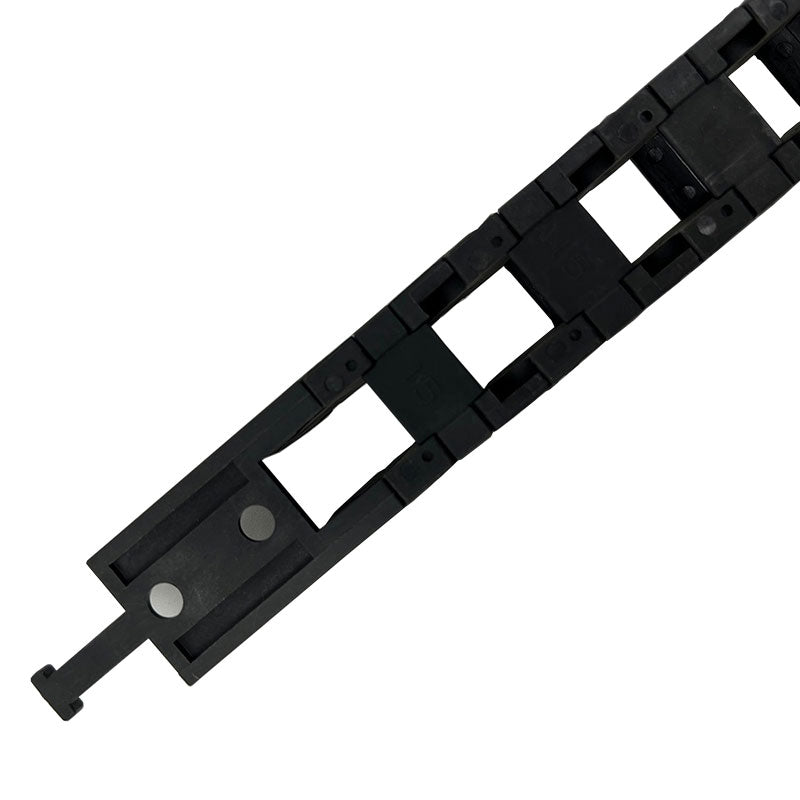

  • CP System Cable Chain - Detailed Close-up of CPS030.15.R48/B2-750L Links
CP System Cable Chain CPS030.15.R48/B2-750L

CP System Cable Chain CPS030.15.R48/B2-750L

Brand: IndustryNest
SKU: CPS03015R48
Availability: In stock
$150.00
CP System Cable Chain CPS030.15.R48/B2-750L - Full View
CP System Cable Chain CPS030.15.R48/B2-750L
$150.00

Product Description

??Chain Material:?CPS-amide with glass fiber reinforced, UL94-HB

??Low Noise:?40 dB (DIN EN 61672-1)

??Speed:?10m / sec

??Temperature:?-30?C ~ +130?C

??Other installation Length:
? ?Vertical curve above= max 1.5m
? ?Vertical curve below= max 10m
? ?Side Mounted, Unsupported= max 0.6m

??Applications:?Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Assembly loader, Wood work machine, Fabric machine.

?

Calculation of the chain length

CP

Product Specifications

Chain Type ?Bending Radius (R) Weight kg/m Bending radius (R) Lp (Loop Length) Lf (Loof Projection) H (Moving Height)
CPS 030.15 48mm 0.38 48 271 119 121
