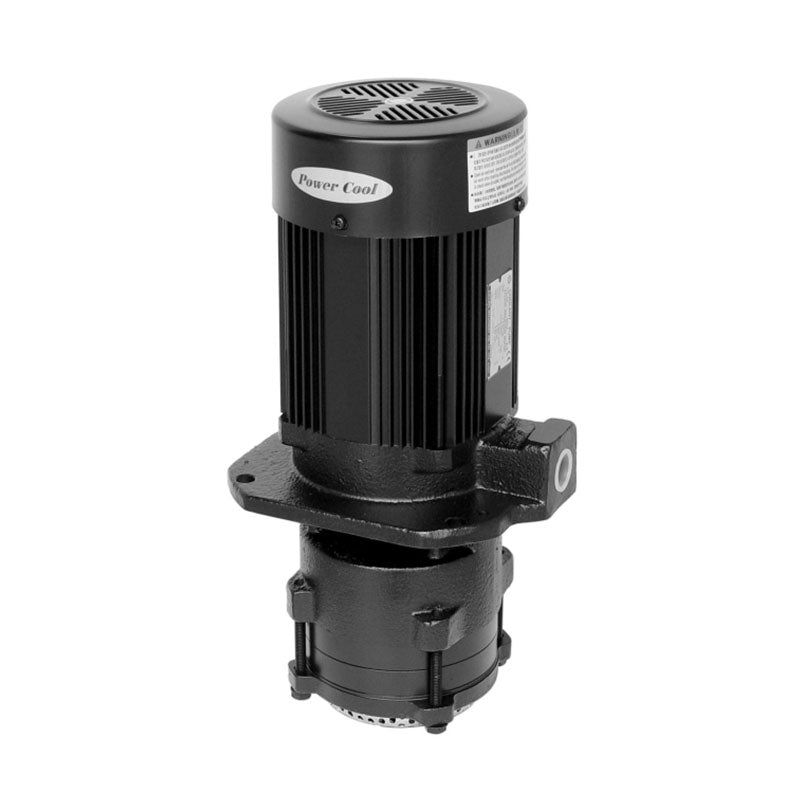

Aryung Coolant Pump ACP-4000HMFS 145
Brand: Aryung
SKU:
ACP4000HMFS145
Availability:
In Stock (ships from Chicago in 1-2 business days)
$1,520.00
Aryung Coolant Pump ACP-4000HMFS 145
$1,520.00
Product Description
The ACP-HMFS series pumps are multi-staged high head pumps. They use a large a quantity of oil flow for large machines with high precision & efficiency.
Product Specifications
| Specifications | ||
|---|---|---|
| Type | ACP-2400HMFS 145 | |
| Pump | Discharge Volume | 30 /min |
| Head | 100/145 m | |
| In-let & Out-let | 3/4 PS | |
| Immersion Depth | 325 mm | |
| Motor | Out-put | 40000 W |
| Frequency | 50/60 Hz | |
| Voltage | 200/380/415 V | |
| Current | 15.4/8.9/8.5 A | |
| Weight | 49 kg | |
External Dimensions
Performance Range
The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.
| TYPE | L | L1 | L2 | L3 | L4 | TL | R1 | PE |
| 4000HMFS | 325 | 25 | 276 | 30 | 253 | 652 | 170 | PS 3/4 |
