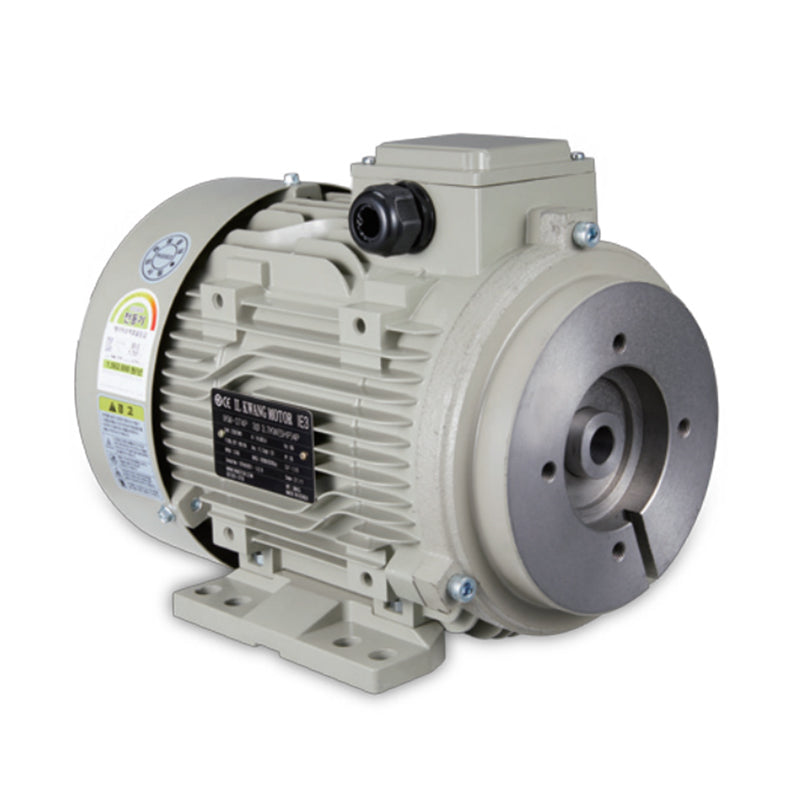

IK ELECTRIC IEC 100 Frame Aluminum Metric Hydraulic Motor, B34 Horizontal, 3-Phase, 3hp, 60 Hz, 220V, 1800 RPM, TEFC
Brand: IK Electric
SKU:
B34IE22kW3HP4
Availability:
In stock
Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Hydraulic Motor
Type: B34 Horizontal type
Model Number: IE1, 1Φ 2.2Kw (3HP)
RPM : 1,800
Pole : 4
Voltage : 220V
Hertz : 60 Hz
IP rating : 55
Manufacturer : IK ELECTRIC
UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715
Product Description
IEC 100 frame 3-phase IEC metric general purpose AC motors have a 12.7 mm diameter, 63mm length shaft whose center is 100mm above the base mounting surface. IEC100 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards
B34 Horizontal Type IK Hydraulic Unit Motor?
? Condenser Running
? 3-Phase TEFC Standard Motor
Rigid and Durtors
? Condenser Running
? Condenser Starting & Running
?
POWER
3-Phase, AC(220V), 60Hz
Product Specifications
Dimensional drawing
| Frame | Output | ? | Dimension(mm) | Bearings | |||||||||||||||||||
| Size | HP(kW) | Type | Flange | TAP | ShaftT | A | AB | B | ?K | ?M | H | HA | ?X | C | L | ||||||||
| 100L | 4P | ?N | NA | Y | PCD | E | ?DA | GE | F | ?DP | DE | ODE | |||||||||||
| 3(2.2) | A | 50.8 | 8.5 | 4.5 | 82.55 | 4-M8 | 12.7 | 14.3 | 3.2 | 29.7 | 160 | 190 | 140 | 12 | 15 | 100 | 235 | 199 | 63 | 303 | 6206ZZ | 6205ZZ | |
