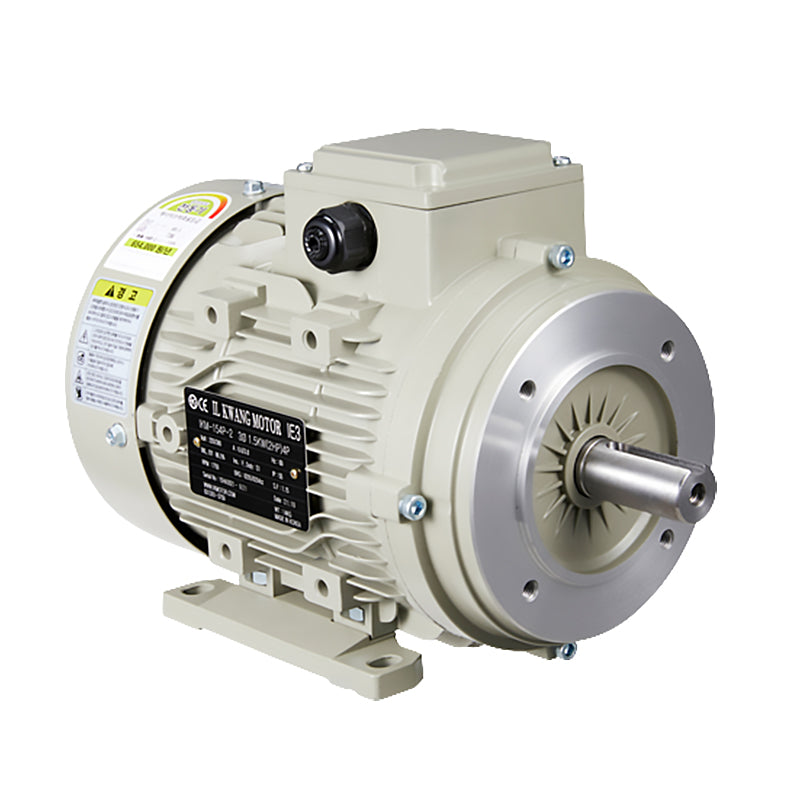

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B34 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
  • IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B34 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B34 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B34 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC

Brand: IK Electric
SKU: B34IE115kW2HP4P
Availability: In stock
Request for Quote

Part : IK Single phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B34 Horizontal C-Face type

Model Number: IE3, 1Φ  1.5Kw (2HP) 4P 60Hz

RPM : 1,800

Pole : 4

Voltage : 220V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 90 frame single-phase IEC metric general purpose AC motors have a 24mm diameter, 50mm length shaft whose center is 90mm above the base mounting surface. IEC90 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B34 Horizontal C-Face Type IK Hydraulic Unit Motor?

? Condenser Running

? Single-Phase TEFC Standard Motor

Rigid and Durtors

? Condenser Running
? Condenser Starting & Running

?

POWER
Single Phase, AC(220V), 60Hz

Product Specifications

Dimensional drawing

B34

Frame
Size		 Output
(kW)		 Dimension(mm) Bearings
Overall DE Shaft extension Base
90L 4P S(Tap) PCD M H C L HA X T D E F FA G A B AB BA K1 K2 DE ODE
1.5 M8 115 95 90 56 324 324 180 3.5 24 50 8 45 4 140 125 169 145 10 15 6205ZZ 6204ZZ
