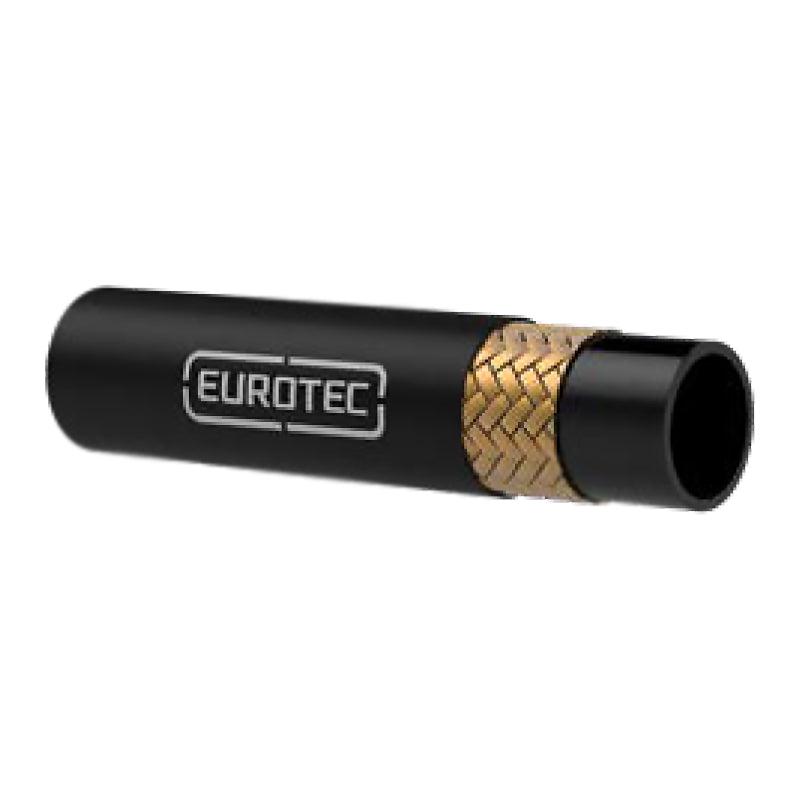

SAE 100R1 AT, DIN EN 853 1SN (Parts No. 101-16)

1 WIRE BRAID HOSE / NO SKIVE TYPE

Inner tube

HYDRAULIC OIL RESISTANT SYNTHETIC RUBBER

Reinforcement

ONE HIGH TENSILE STEEL WIRE BRAID

Outer cover

OIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBER

Application

FOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT
? For air or gas application, external cover shall be PIN-PRICKED over 10kg/? pressure,
resin hose is recommendable

Range of temperature

-40? ~ +100? (-40? ~ + 212?)
for air -40? ~ +70? (-40? ~ +158?)

Hose Specification (101-16)

Fitting Specification (S202-16-16)
