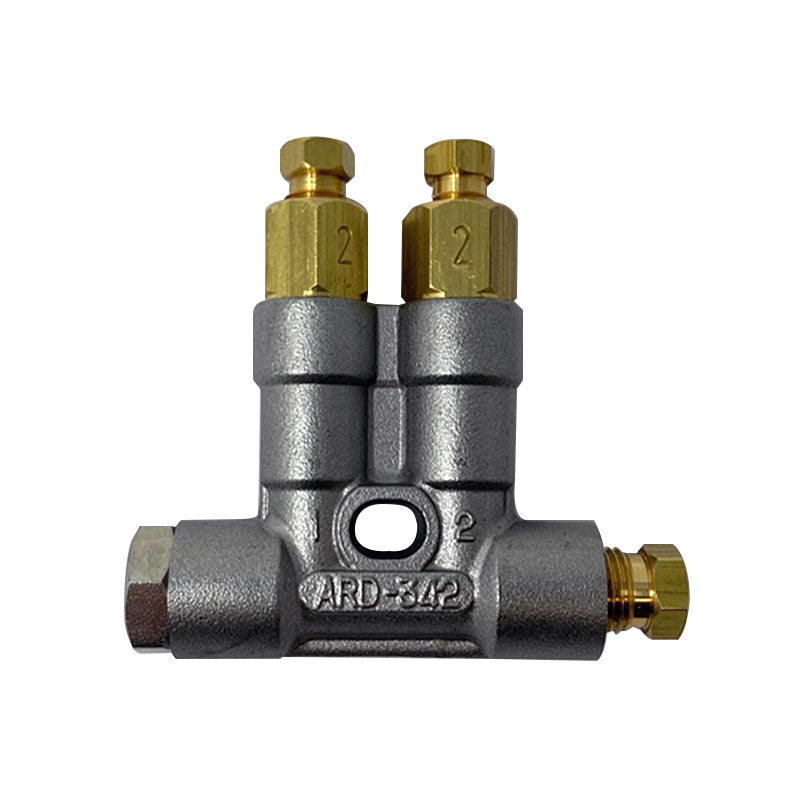

A-Ryung Piston Distributor ARD-342-22
Brand: A-Ryung
SKU:
ARD-342
Availability:
In stock
$100.00
A-Ryung Piston Distributor ARD-342-22
$100.00
Product Description
The ARD-342(22) measuring valve is designed with an intermittent precision system that delivers lubrication with every piston stroke.
This piston distributor offers both screw and one-touch type settings. The one-touch setting offers the ability to save time and lower costs.
Because of its minimal range of error in regards to flow, it is suitable for applications that require precise lubrication configurations.
Model No.
|
ARD - 34 2 - 22 ? ? ? ? ? ?? ?? ? |
||
|
? Division 34 : 340 series 35 : 350 series |
? Distribution 2, 3, 5 |
? Flow code |
Flow Code
| Flow Code No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|
Discharge volume cc/min |
0.03 | 0.06 | 0.1 | 0.16 | 0.2 | 0.4 | 0.6 |
Order Example
To assist with your order placement, please review these metrics to determine the appropriate flow code for the ARD-340 type.
| Discharge volume cc/min | 0.1 | 0.1 | 0.2 |
| Order code | 3 | 3 | 5 |
| Order No. | ARD-343-335 | ||
Example of Use
Product Specifications
| Type? |
Discharge Points |
Using pressure |
Bore of pipe |
Net weight(g) |
Valve Code No. |
Discharge ?Volume(cc/st) |
|
| Central Pipe | Branch pipe | ||||||
| ARD-342 | 2 | 0.8-3.0 | M10x1.0p | M8x1.0p | 115 | 22 | 0.06, 0.06 |
Product Drawing
| Type | A | B | C | D | E |
| 342 (2 Ports) | 48 | 24 | - | 17 | 1 |
| 343 (3 Ports) | 65 | 32.5 | 17 | 34 | 2 |
| 345 (5 Ports) | 99 | 49.5 | 51 | 68 | 2 |
