A-Ryung Piston Distributor ARD-355-55755
Brand: A-Ryung
SKU:
ARD-35555755
Availability:
In stock
$220.00

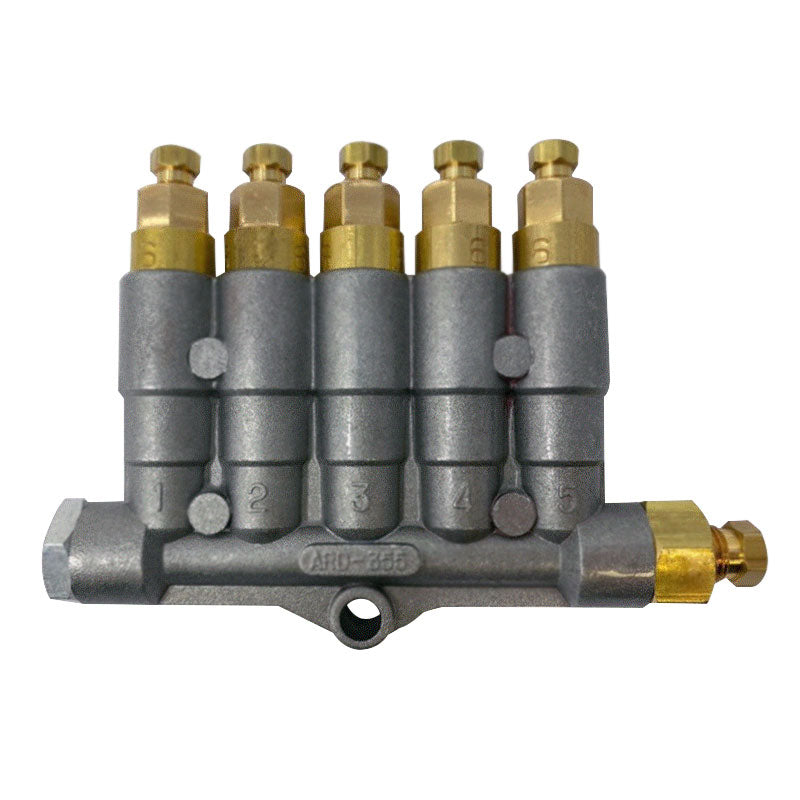

A-Ryung Piston Distributor ARD-355-55755
$220.00
Product Description
The ARD-355 (55755) measuring valve is designed with an intermittent precision system which delivers lubrication with every piston stroke.
This piston distributor offers both screw and one-touch type settings. The one-touch setting saves time and lowers costs.
Because of its minimal range of error in flow, it is suitable for applications that require precise lubrication configurations.
Model No.
|
ARD – 35 5 – 55755 ①②③ | ||
|
① Division 34 : 340 series 35 : 350 series |
② Distribution 2, 3, 5 ports |
③ Flow code See table below |
Flow Code
| Flow code no. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Discharge volume (cc/min) | 0.03 | 0.06 | 0.1 | 0.16 | 0.2 | 0.4 | 0.6 |
Order Example
To assist with your order placement, review these metrics to determine the appropriate flow code for the ARD-350 type.
| Discharge volume (cc/min) | 0.1 | 0.1 | 0.2 |
| Order code | 3 | 3 | 5 |
| Order no. | ARD-355-55755 | ||
Example of Use
Product Specifications
| Type | Discharge points | Using pressure (MPa) | Bore of pipe | Net weight (g) | Valve code no. | Discharge volume (cc/st) | |
|---|---|---|---|---|---|---|---|
| Central pipe | Branch pipe | ||||||
| ARD-355 | 5 | 0.8–3.0 | M10x1.0p | M8x1.0p | 464 | 55755 | 0.2, 0.2, 0.6, 0.2, 0.2 |
Product Drawing
| Type | A | B | D |
|---|---|---|---|
| 352 (2 ports) | 45 | 22.5 | 17 |
| 353 (3 ports) | 62 | 31 | 34 |
| 355 (5 ports) | 95 | 47.5 | 68 |
Dimensions in mm.
