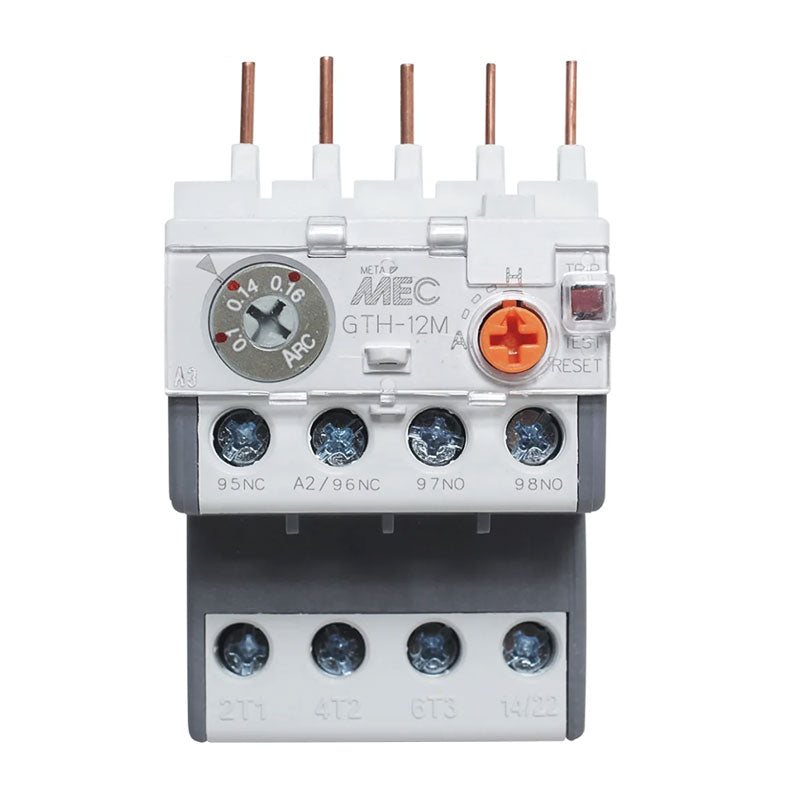

LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)
  • LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)
LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)

LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)

Brand: LS Electric
SKU: C54341
Availability: In stock
$70.00
LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)
LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)
$70.00

Product Description

LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)

  • CE Marking compliant products that have passed the certification test.
  • Terminal cover is standard equipment.
  • This is a UL-compliant product for your peace of mind.
  • Can be mounted on any mini contactor regardless of frame size.
  • With manual / auto reset function.
  • Extremely compact at just 45 mm wide.
  • Contact is 1a1b.

Product Specifications

Specifications
Model GTH-12M~3.3
Mini Contactor Frame Size Common 12 AF
Setting Range 2.5 ~ 4
Number of Electrodes 3
Auxiliary Contact 1a1b
Representative Standards CD
Dimension Length 73.2 mm
Dimension Width 45 mm
Dimension Thickness 63.7 mm
Specifications Standard / 2 Element
Finger Protection / Thermal Cover Yes

Product DrawingGTH-12M

Brand LS Electric
Availability In Stock
