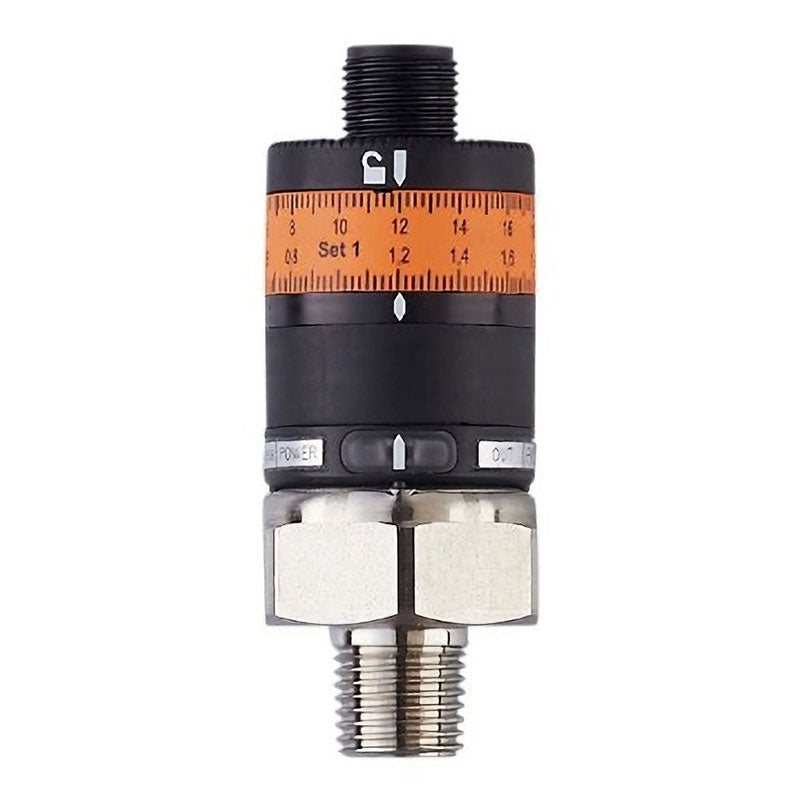

IFM Pressure Switch PK5722
Brand: IndustryNest
SKU:
100407
Availability:
In stock
$160.00
IFM Pressure Switch PK5722
$160.00
Product Description
? Simple switch point setting via setting ring
? High long-term stability thanks to robust stainless steel measuring cell with high permissible pressure rating
? Mechanical locking prevents inadvertent switch point manipulation
? Lifespan of more than 50 million pressure cycles
? For use in hydraulics, pneumatics, air-conditioning and refrigeration
Product Specifications
| Specifications | |
| Media | Liquid and Gases |
| Medium Temperature | -25 ?C - 80 ?C |
| Pressure Rating | 20 bar, 2 MPa |
| Min. Bursting Pressure | 100 bar, 10 MPa |
| Type of Pressure | Relative Pressure |
| Electrical Data | |
| Operating Voltage | 9.6 V - 32 V DC |
| Current Consumption | < 25 mA |
| Min. Insulation Resistance | 100 M? (500 V DC) |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Inputs / Outputs | |
| Number of Digital Inputs / Outputs | 1 |
| Output Signal | Switching Signal |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Max. Voltage Drop Switching Output | 2 V DC |
| Permanent Current Rating of Switching output | 500 mA DC |
| Switching Frequency | 100 Hz DC |
| Short-circuit Protection | Yes |
| Type of Short-circuit Protection | Pulsed |
| Overload Protection | Yes |
