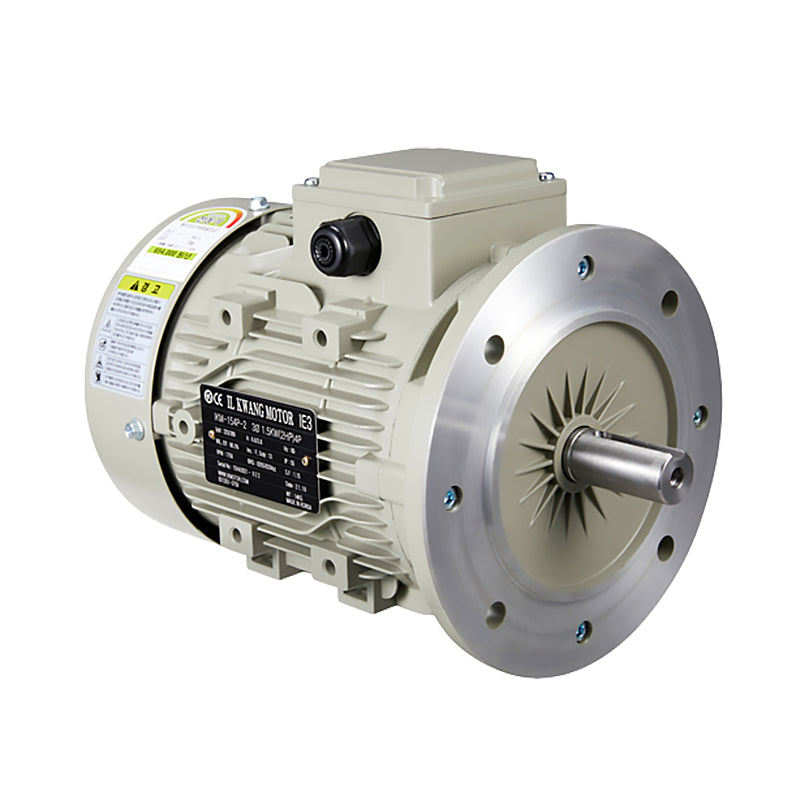

IK ELECTRIC IEC 112 Frame Aluminum Metric Motor, B35 Horizontal Vertical , 3-Phase, 5hp, 60 Hz, 220V/380V, 3600 RPM, TEFC

Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B35 Horizontal Vertical type

Model Number: IE3, 3Φ  3.7Kw (5HP)

RPM : 3,600

Pole : 2

Voltage : 220V/380V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 112 frame single-phase IEC metric general purpose AC motors have a 28mm diameter, 60mm length shaft whose center is 112mm above the base mounting surface. IEC112 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B35 Horizontal Vertical Type IK Hydraulic Unit Motor

• Condenser Running

• 3-Phase TEFC Standard Motor

Rigid and Durable Motors

• Condenser Running
• Condenser Starting & Running

POWER
3-Phase, AC(220V/380V), 60Hz

Product Specifications

Dimensional drawing
