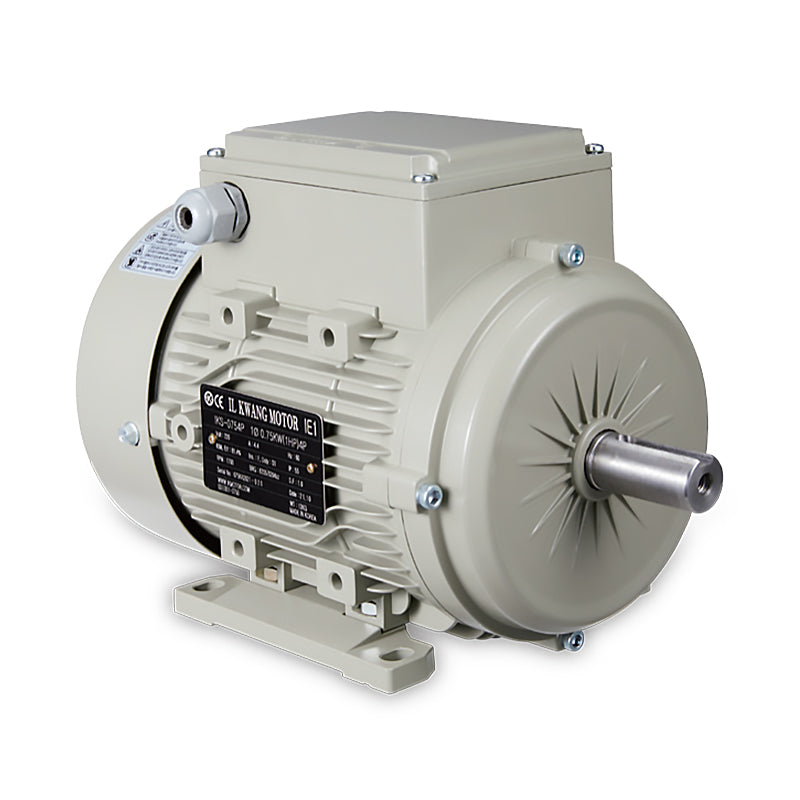

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B3 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
  • IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B3 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B3 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B3 Horizontal, 1-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC

Brand: IK Electric
SKU: B3IE115kW02HP4P
Availability: In Stock (ships from Chicago in 1-2 business days)
Request for Quote

Part : IK Single phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B3 Horizontal type

Model Number: IE1, 1Φ  1.5Kw (2HP) 4P 60Hz

RPM : 1,800

Pole : 4

Voltage : 220V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 90 frame single-phase IEC metric general purpose AC motors have a 24mm diameter, 50mm length shaft whose center is 90mm above the base mounting surface. IEC90 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B3 Horizontal Type IK Hydraulic Unit Motor

• Condenser Running

• Single-Phase TEFC Standard Motor

Rigid and Durable Motors

• Condenser Running
• Condenser Starting & Running



POWER
Single Phase, AC(220V), 60Hz

Product Specifications

Dimensional drawing

IK

Frame Output Dimension(mm) Bearings
Size (kW) DE Shaft extension Base
90L 4P H C L HA X D E F FA G A B AB BA K1 K2 DE ODE
1.5 90 56 324 218 180 24 50 8 45 4 140 125 169 145 10 15 6205ZZ 6204ZZ

Brand IK Electric
Availability In Stock
Estimated Delivery 28 Days
