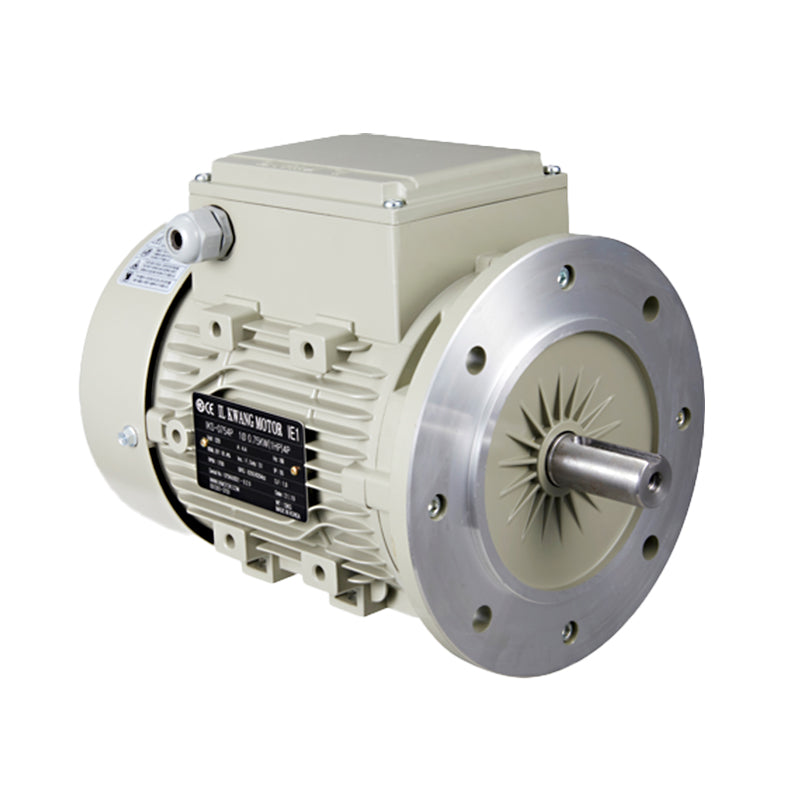

IK ELECTRIC IEC 80 Frame Aluminum Metric Motor, B5 Vertical, 3-Phase, 0.75hp, 60 Hz, 220V, 1800 RPM, TEFC

Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B5 Vertical l type

Model Number: IE3, 1Φ  0.55Kw (3/4HP) 4P 60Hz

RPM : 1,800

Pole : 4

Voltage : 220V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 80 frame 3-phase IEC metric general purpose AC motors have a 19mm diameter, 40mm length. IEC80 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B5 Vertical Type IK Hydraulic Unit Motor

• Condenser Running

• Single-Phase TEFC Standard Motor

Rigid and Durable Motors

• Condenser Running
• Condenser Starting & Running

POWER
Single Phase, AC(220V), 60Hz

Product Specifications

Dimensional drawing
