Switching Mode Power Supply MSF15-15
Brand: Orient Electronics
SKU:
702MSF1515
Availability:
In stock
$240.00

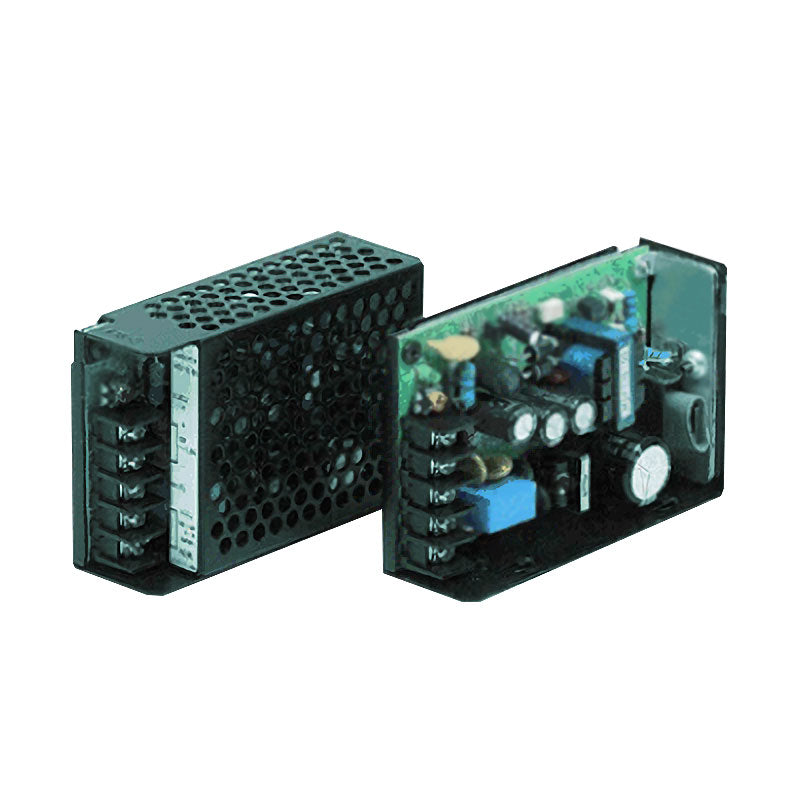

Switching Mode Power Supply MSF15-15
$240.00
Product Description
? Over current protection
? Over voltage protection
? Complies with FCC Part 15 and EN 5022
? Class A Limits
? Remote Sensing
Product Specifications
| Electrical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ? | MODEL | MSF15-3R3 | MSF15-05 | MSF15-09 | MSF15-12 | MSF15-15 | MSF15-24 | ||
| INPUT | VOLTAGE, FREQUENCY | AC100-240V (AC 85 ~ 246V or DC 125 ~ 370V), 50/60Hz (47 ~ 440Hz) Universal Input | |||||||
| CURRENT [A] | 110V | 0.4 (I?=100%) | |||||||
| 220V | 0.2 (I?=100%) | ||||||||
| EFFICIENCY [%] | 110V | 67 typ | 67 typ | 71 typ | 73 typ | 75 typ | 78 typ | ||
| 220V | |||||||||
| INRUSH CURRENT | 20A typ (ACIN 110V, I?=100%), 40A typ (ACIN 220V, I?=100%) Ta = 25? of cold start. | ||||||||
| OUTPUT | VOLTAGE [V] | 3.3 | 5 | 9 | 12 | 15 | 24 | ||
| CURRENT [A] | 3 | 4 | 1.67 | 1.25 | 1 | 0.06 | |||
| REGULATION, LINE [mV] | 25 Max | 25 Max | 45 Max | 60 Max | 75 Max | 120 Max | |||
| REGULATION, LOAD [mV] | 50 Max | 50 Max | 90 Max | 120 Max | 150 Max | 240 Max | |||
| RIPPLE [mVp-p] | 35 Max | 50 Max | 90 Max | 120 Max | 150 Max | 240 Max | |||
| RIPPLE, NOISE [mVp-p] | 85 Max | 100 Max | 140 Max | 170 Max | 200 Max | 290 Max | |||
| TEMPERATURE DRIFT 0~+50? [mV] | 85 Max | 90 Max | 162 Max | 216 Max | 270 Max | 432 Max | |||
| RISE TIME [ms] | 500 max (AC IN 110V, I?=100%) | ||||||||
| HOLDING TIME [ms] | 20 typ (AC IN 110V, I?=100%) | ||||||||
| PROTECTION CIRCUIT | OVER CURRENT PROTECTION | Works at over 110% of rating and recovers automatically | |||||||
| OVER VOLTAGE PROTECTION | Works at 115 ~ 140% of rating (In the case of 3.3V, it is 115 ~ 160%) | ||||||||
| ELECTRICALLY ISOLATED | INPUT-OUTPUT | AC 3,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity) | |||||||
| INPUT-CASE, FG | AC 2,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity) | ||||||||
| OUTPUT-CASE, FG | AC 500V 1 minute current 100mA, DC 500V 100M? (At room temperature & humidity) | ||||||||
| ENVIRONMENT | OPERATING TEMP AND HUMID | -10 ~ +50?, 20 ~ 90% RH(Non condensing) | |||||||
| STORAGE TEMP AND HUMID | -20 ~ +75?, 20 ~ 90% RH(Non condensing) | ||||||||
| VIBRATION | 10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along ? X, Y and Z axis | ||||||||
| IMPACT | 10G for 20ms once on each X, Y and Z axis | ||||||||
| SAFETY | SAFETY REGULATION | - | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | ||
| LINE CONDUCTED RF VOLTAGE | Complied with FCC Part15 and EN55022 Class A Limits | ||||||||
Product Drawing
