IOLINK R4T-16P-S Relay Board
  • IOLINK R4T-16P-S Relay Board
  • IOLINK R4T-16P-S Relay Board
IOLINK R4T-16P-S Relay Board

IOLINK R4T-16P-S Relay Board

Brand: SAMWON ACT
SKU: R4T16PS
Availability: In stock
$62.80
IOLINK R4T-16P-S Relay Board
IOLINK R4T-16P-S Relay Board
$62.80

Product Description

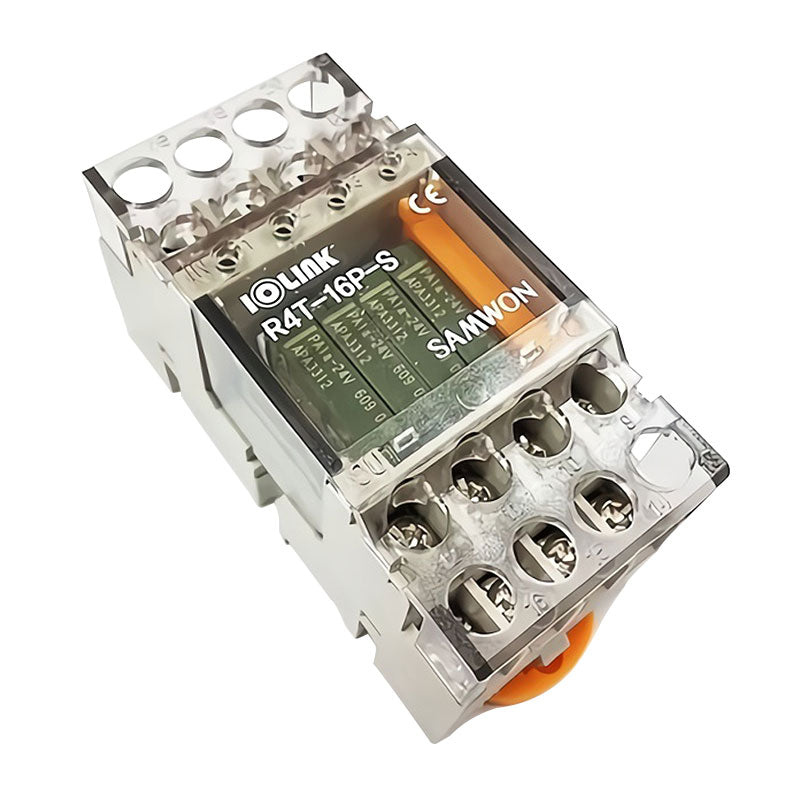

The IOLINK R4T-16P-S Relay Board is a high-endurance and economical relay board suitable for inductive loads, frequently opened/closed loads, or loads with significant noise. This board comes equipped with PANASONIC PA1a relays, offering convenient functions and reliable performance for various industrial applications.

Features:

  • 4-Points, Individual Common Type:
      • Equipped with 2 models mounting Takamisawa/Panasonic relay respectively available.
      • Reliable high-endurance and economy-typed relay board suitable for inductive loads, frequently opened/closed loads, or loads with lots of noise.
      • Convenient functions for the benefit of users.
      • Easy to check operation status by attaching contact LED.
      • Easy to work with a structure that can be mounted on DIN rail and middle plate.
      • Easy maintenance as a relay replacement tool is provided.
      • Easy wiring by using the built-in common bar.
  • Supplied 2 Types of Models Equipped with TAKAMISAWA/PANASONIC Relays:
      • Production of 2 types of 5 mm wide TAKAMISAWA NYP and PANASONIC PA-N relays.
  • High-Reliability, Long-Life, and Economical Relay Board:
      • Suitable for inductive loads, loads with frequent opening/closing, and loads with a lot of noise.

Product Specifications

Specifications
Model R4T-16P-S
Installation Relay PANASONIC PA1a-24V
Point(s) 4 Point (1*4)
Rated Voltage 24V DC
Common Coil Individual Power Supply
Contact Individual Common
Interface Coil Screw Terminal
Contact 7.62? Pitch
Dimensions (WxD) 32.3mm x 67.0mm
Mounting Method Screw Mounting DIN Rail (Channel)

Detailed Specifications
Contact Arrangement 1 Form A (Bifurcated)
Nominal Switching Capacity (Resistive Load) 5A 250V AC/5A 30V DC
Max. Switching Current 5A
Max. Switching Voltage 250V AC/ 110V DC (0.4 A)
Coil Nominal Voltage 24V DC
Pick-up Voltage 70% max. of Rated voltage
Drop-out Voltage 5% min. of Rated voltage
Coil Resistance 5,236?
Nominal Operation Power 110mW
Surge Voltage Between Contact and Coil 6,000V
Initial Breakdown Voltage Between Contact and Coil 3,000V rms for 1min

Material Specification
Rated load capacity CE 250V AC, 30V DC / 5A
UL 250V AC, 30V DC / 3A
Suitable wire AWG22~16 (1.5 ? / MAX)
Terminal screw M3 X 6L
screw torque 7~8Kgf ?cm (0.68~0.78?m)
Case Modified PPD
Protecive cover Polycabonate
Board Epoxy 1.6t / 2oz
Ambient temperature -10? ~ +50? (No condensation)

Brand SAMWON ACT
Availability In Stock
