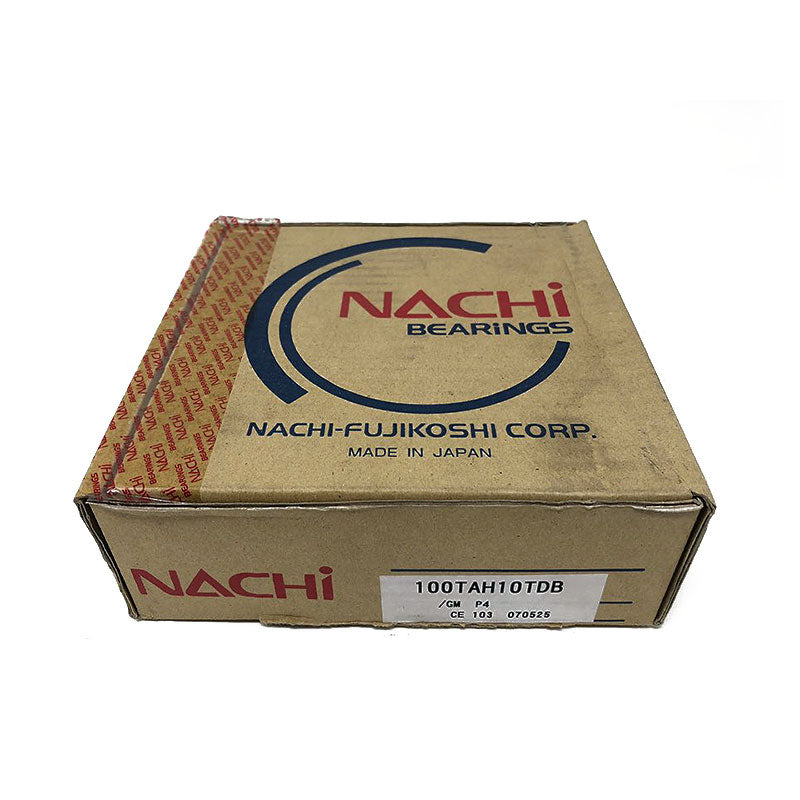

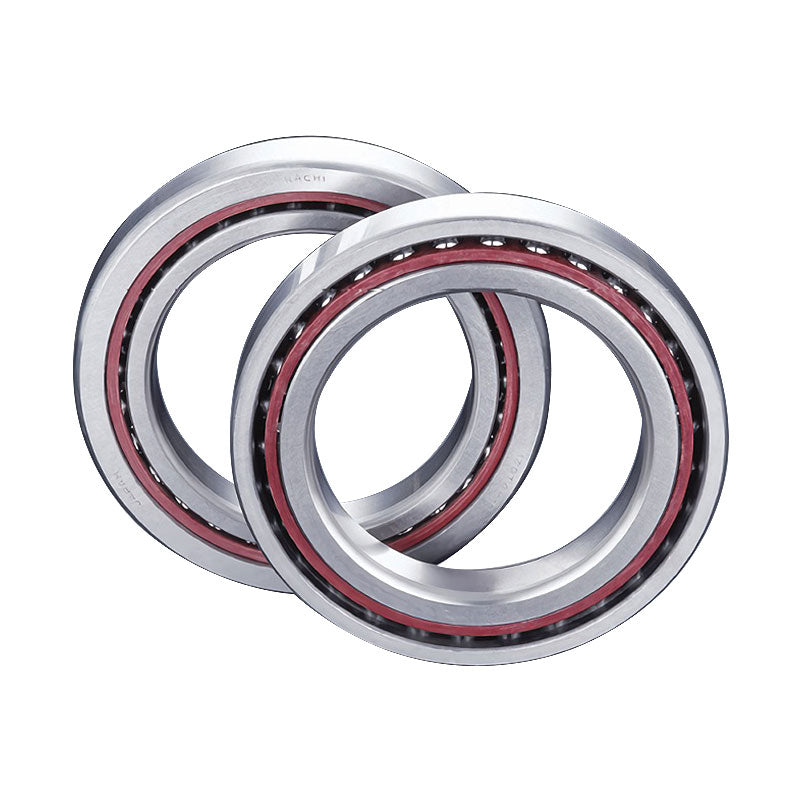

Nachi Angular Contact Ball Bearing 100TAH10DB
Brand: IndustryNest
SKU:
591100BA1001NA
Availability:
In stock
$230.00
Nachi Angular Contact Ball Bearing 100TAH10DB
$230.00
Product Description
Same number and diameter of balls as the TAD20 type double direction thrust angular contact ball bearings,
and with smaller contact angles, 30? (TAH Series) or 40? (TBH Series), providing better high-speed performance with no separable ring.
2B width dimension of a duplex mounting (DB or DF) that is equivalent to the B1 dimension of the TAD20 Type.
TAH/TBH Series are interchangeable by changing the method used to secure them to the shaft.
Product Specifications
| Specifications | ||
| Bearing No | 100TAH10DB | |
| Boundary Dimensions | d | 100 mm |
| D | 150 mm | |
| 2B | 45 mm | |
| r min | 1.5 mm | |
| r1 min | 2 mm | |
| Load Center a | 24.8 mm | |
| Basic Dynamic Load Rating | 57 Cr (kN) | |
| Basic Static Load Rating | 147 Cor (kN) | |
| Specifications | ||
|---|---|---|
| Limiting Speed | Grease Lubrication | 7,000 min-1 |
| Oil Lubrication | 7,600 min-1 | |
| Corner Radius | da min | 117.5 mm |
| da1 min | 142 mm | |
| R min | 1.5 mm | |
| R1 min | 1 mm | |
| Tapered Bore Mass | 1.35 kg | |
