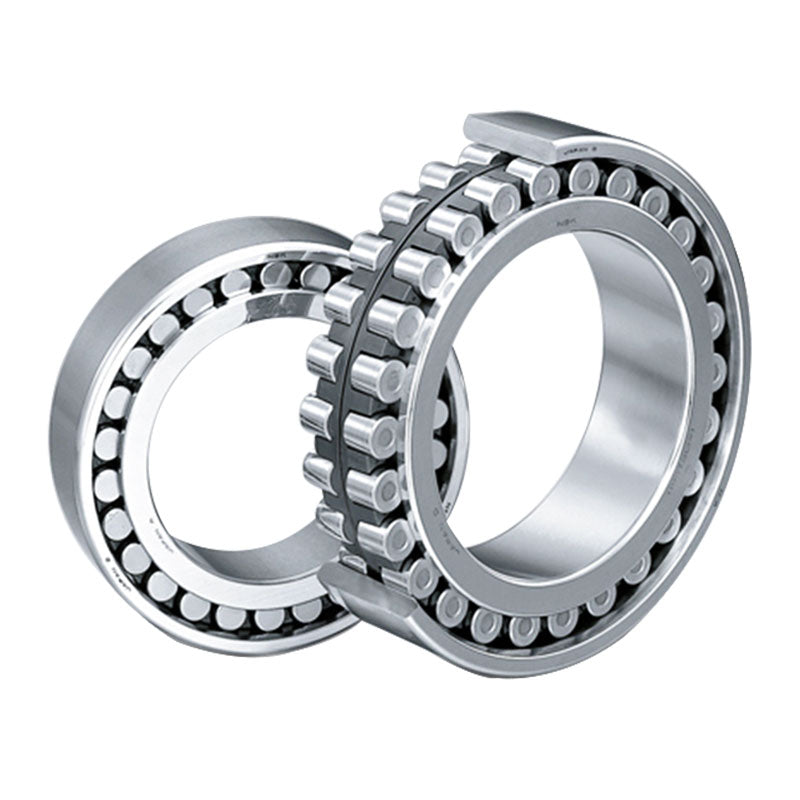

NSK Cylindrical Roller Bearing NN3028KMBCC9P4
Brand: IndustryNest
SKU:
NN3028MBKRCC9P4
Availability:
In stock
$1,350.00
NSK Cylindrical Roller Bearing NN3028KMBCC9P4
$1,350.00
Product Description
If the load on the cylindrical roller bearing becomes too small during operation, slippage between the rollers and raceways occurs which may result in smearing.
This is especially with large bearings since the weight of the rollers and cafe is high. If very small bearing loads are expected please consult with us for selection of the bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 140 mm |
| D | 210 mm | |
| B | 53 mm | |
| r min | 2 mm | |
| Fw | - | |
| Ew | 178 mm | |
| Basic Load Ratings | Cr | 301 kN |
| Cor | 375 kN | |
| Cr | 20,500 kgf | |
| Cor | 38,500 kgf | |
| Specifications | ||
|---|---|---|
| Abutment and Fillet Dimensions | da | 152 mm |
| d1a | 157 mm | |
| dc?mic | - | |
| Da | 196 mm | |
| Ra?max | 2 mm | |
| Mass | Approx. | 6.34 kg |
