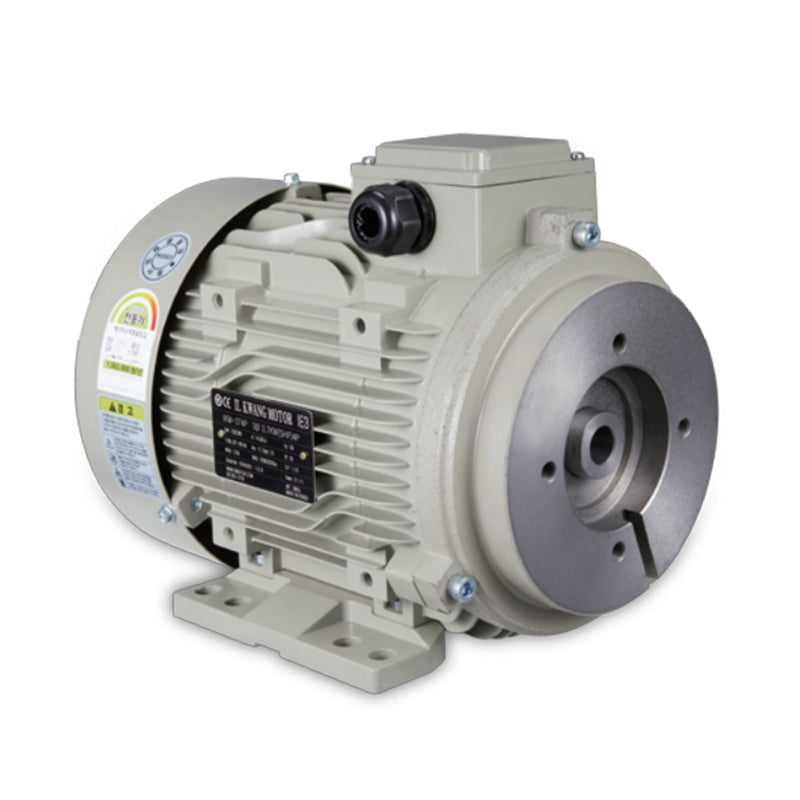

IK ELECTRIC IEC 80 Frame Aluminum Metric Hydraulic Motor, B34 Horizontal, single-Phase, 1hp, 60 Hz, 220V, 1800 RPM, TEFC
Brand: IK Electric
SKU:
B34IE10.75kW1HP4P
Availability:
In stock
Part : IK 3-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Hydraulic Motor
Type: B34 Horizontal type
Model Number: IE1, 1Φ 0.75Kw (1HP)
RPM : 1,800
Pole : 4
Voltage : 220V
Hertz : 60 Hz
IP rating : 55
Manufacturer : IK ELECTRIC
UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715
Product Description
IEC 80 frame Single-phase IEC metric general purpose AC motors have a 12.7 mm diameter, 55mm length shaft whose center is 80mm above the base mounting surface. IEC80 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards
B34 Horizontal Type IK Hydraulic Unit Motor?
? Condenser Running
? Single-Phase TEFC Standard Motor
Rigid and Durtors
? Condenser Running
? Condenser Starting & Running
?
POWER
Single-Phase, AC(220V), 60Hz
Product Specifications
Dimensional drawing
| Frame | Output | ? | Dimension(mm) | Bearings | |||||||||||||||||||
| Size | HP(kW) | Type | Flange | TAP | ShaftT | A | AB | B | ?K | ?M | H | HA | ?X | C | L | ||||||||
| 80M | 4P | ?N | NA | Y | PCD | E | ?DA | GE | F | ?DP | DE | ODE | |||||||||||
| 1(0.75) | A | 50.8 | 7.5 | 2 | 82.55 | 4-M8 | 12.7 | 14.3 | 3.2 | 29.7 | 125 | 149 | 100 | 10 | 15 | 80 | 189 | 160 | 55 | 232 | 6206ZZ | 6203ZZ | |
