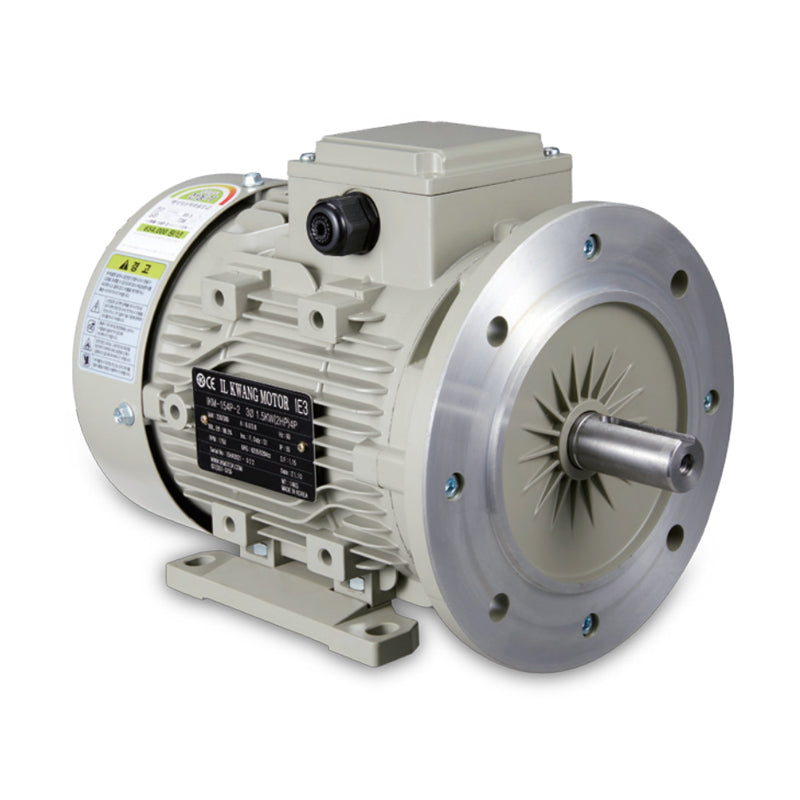

IK ELECTRIC IEC 90 Frame Aluminum Metric Motor, B35 Horizontal Vertical , Single-Phase, 2hp, 60 Hz, 220V, 1800 RPM, TEFC
Brand: IK Electric
SKU:
B35IE115kW2HP4
Availability:
In stock
Part : IK Single-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor
Type: B35 Horizontal Vertical type
Model Number: IE1, 1Φ 1.5Kw (2HP)
RPM : 1,800
Pole : 4
Voltage : 220V
Hertz : 60 Hz
IP rating : 55
Manufacturer : IK ELECTRIC
UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715
Product Description
IEC 90 frame single-phase IEC metric general purpose AC motors have a 24mm diameter, 50mm length shaft whose center is 90mm above the base mounting surface. IEC90 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.
B35 Horizontal Vertical Type IK Hydraulic Unit Motor?
? Condenser Running
? Single-Phase TEFC Standard Motor
Rigid and Durtors
? Condenser Running
? Condenser Starting & Running
?
POWER
Single-Phase, AC(220V), 60Hz
Product Specifications
Dimensional drawing
| Frame | Output | Dimension(mm) | Bearings | ||||||||||||||||||||||
| Size | (kW) | Overall | DE Shaft extension | Base | |||||||||||||||||||||
| 90L | 4P | S(Hole) | PCD | M | N | H | C | HA | LA | L | X | T | D | E | F | FA | G | A | B | AB | BA | K1 | K2 | DE | ODE |
| 1.5 | 12 | 165 | 130 | 200 | 90 | 56 | 218 | 228 | 324 | 180 | 4 | 24 | 50 | 8 | 45 | 34 | 140 | 125 | 169 | 145 | 10 | 15 | 6205ZZ | 6204ZZ | |
Brand
IK Electric
Availability
In Stock
Estimated Delivery
28 Days
