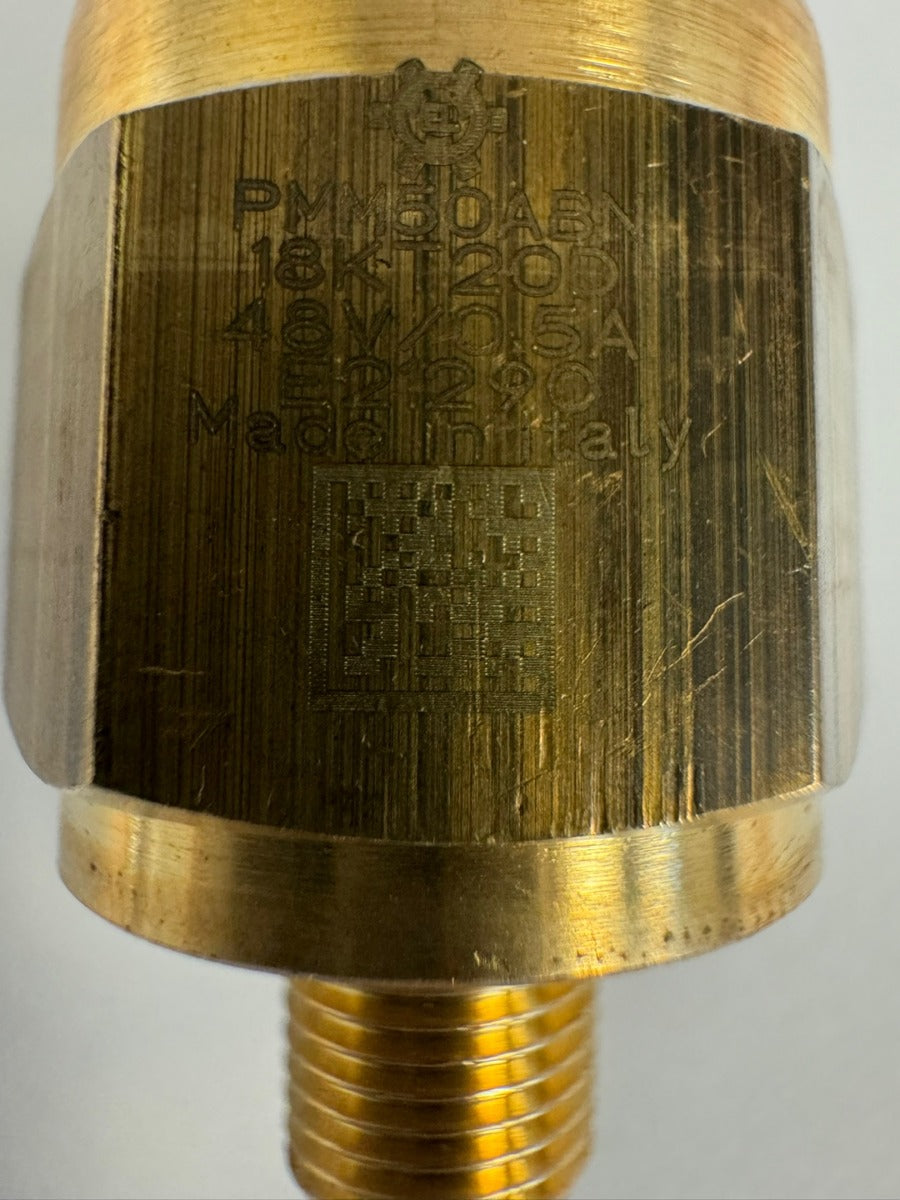

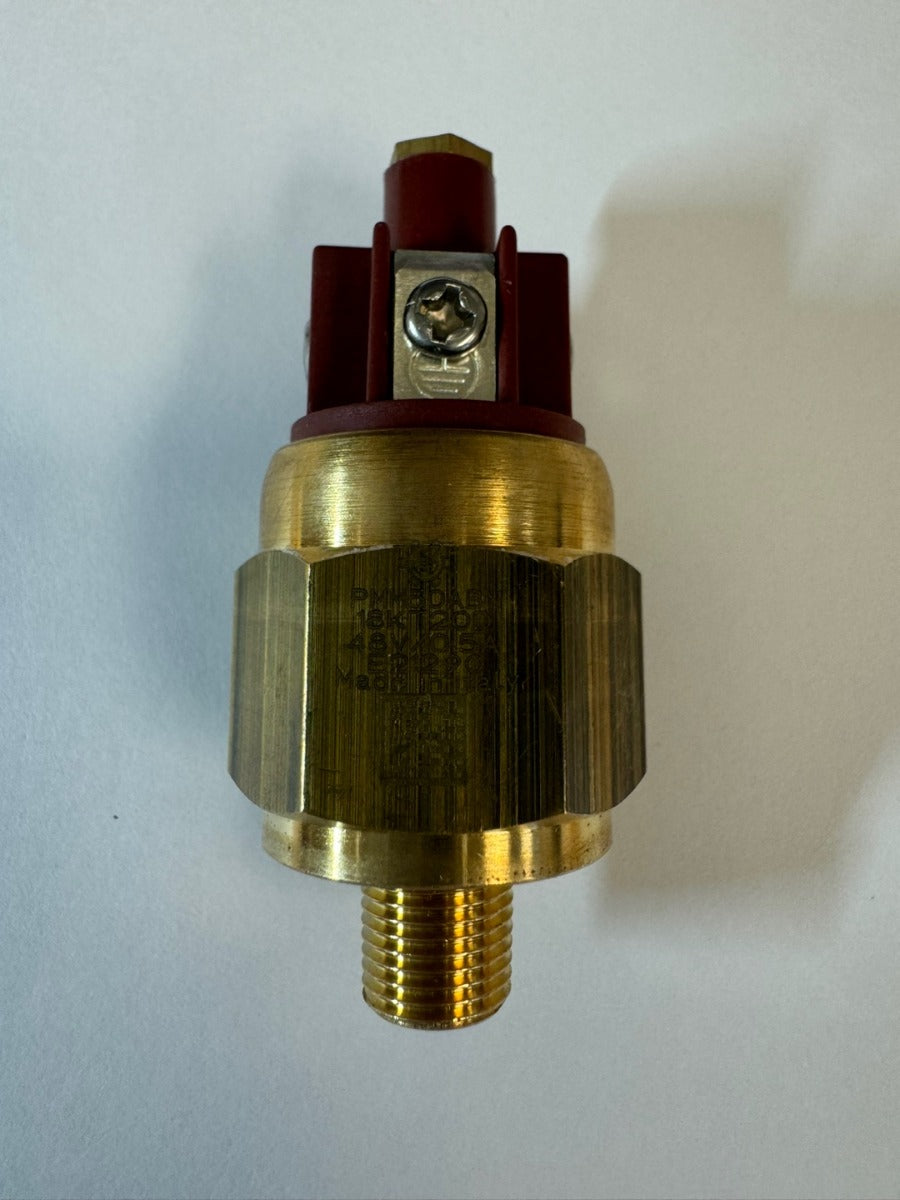

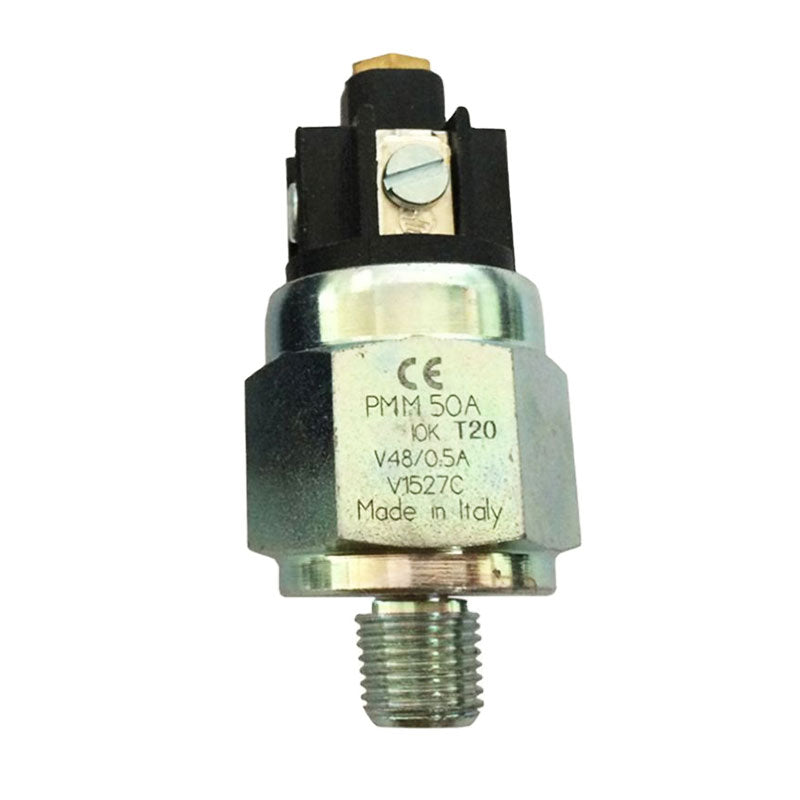

Pressure Switch PMM50A
Brand: IndustryNest
SKU:
R37391
Availability:
In stock
$150.00
Pressure Switch PMM50A
$150.00
Product Description
Pressure switch PMM50A10K Mechanical
Product Specifications
| Specifications | |
| Contact Capacity | 0.5 (0.2)A / 48Vca-cc |
| Electrical Connection | Faston 6.3?0.8 |
| Calibration Range | 0.1?1bar; 0.15?2bar; 2?10bar; 10?20bar; 20?50bar; 50?80bar; 50?150bar; 100?250bar; 50?300bar |
| Max Static Pressure Supportable | 300bar, 600bar (according to the calibration range and the chosen body material) |
| Maximum Temperature | -40 ? C to + 140 ? C (depending on the membrane/seal) |
| Contact Type (w/out Pressure) | NA, NC |
| Body Material | Brass - AVP steel - AISI 316 stainless steel on request on all models |
| Piston Seal Material | NBR - FKM - Silicone - HNBR - Neoprene - EPDM - Stainless steel - ZNBR |
| Threads | Conical: G1 / 8 BSPT - G1 / 4 BSPT - M10x1 Cylindrical: M12x1,5 - G1 / 4 BSPP - G1 / 8 BSPP |

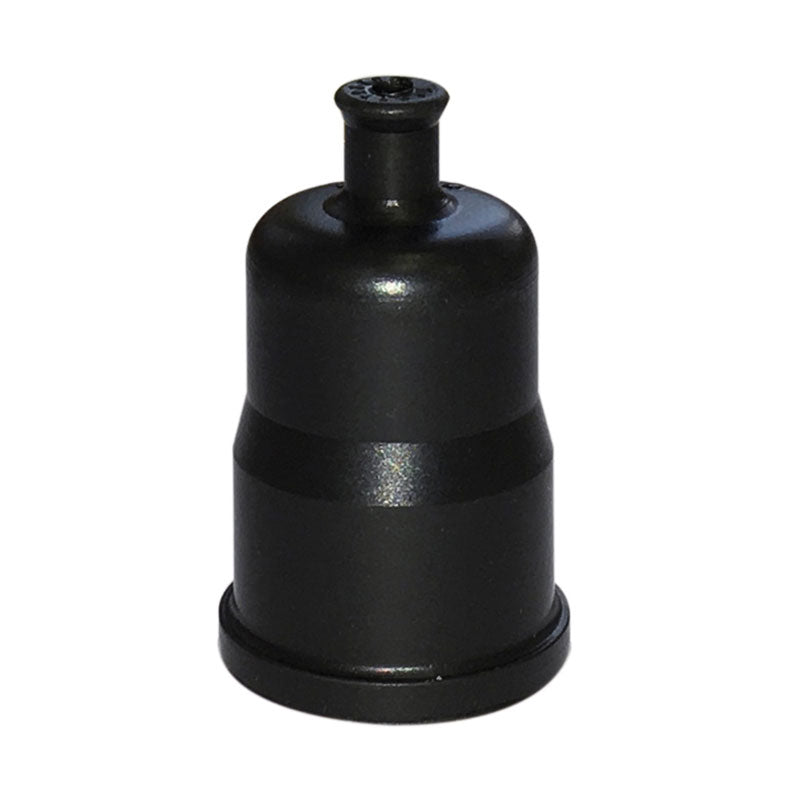

| Degree of Protection | IP00 (terminal protection); IP54 (CAP1); IP65 (CAP3) |
| Mechanical Life | 106 Cycles |
| Dimensions | Body Ch. 24 Height max. 46 mm |
| Certifications | UR |
| Custom Requests | Upward calibration, Downward calibration, Gold contacts, Degreasing for oxygen, Gas test, High pressure execution, Special threads |
