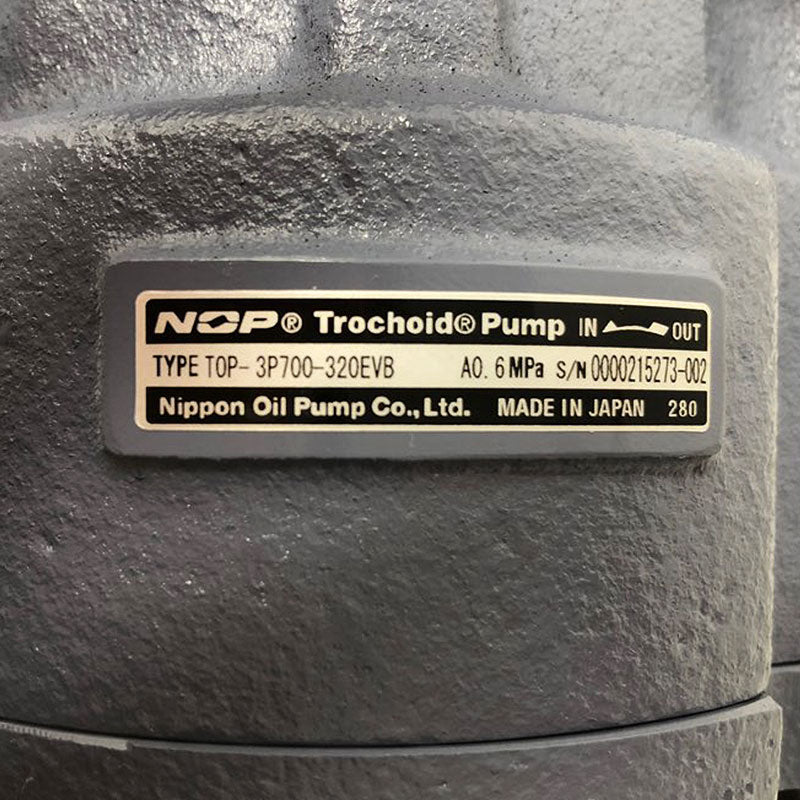

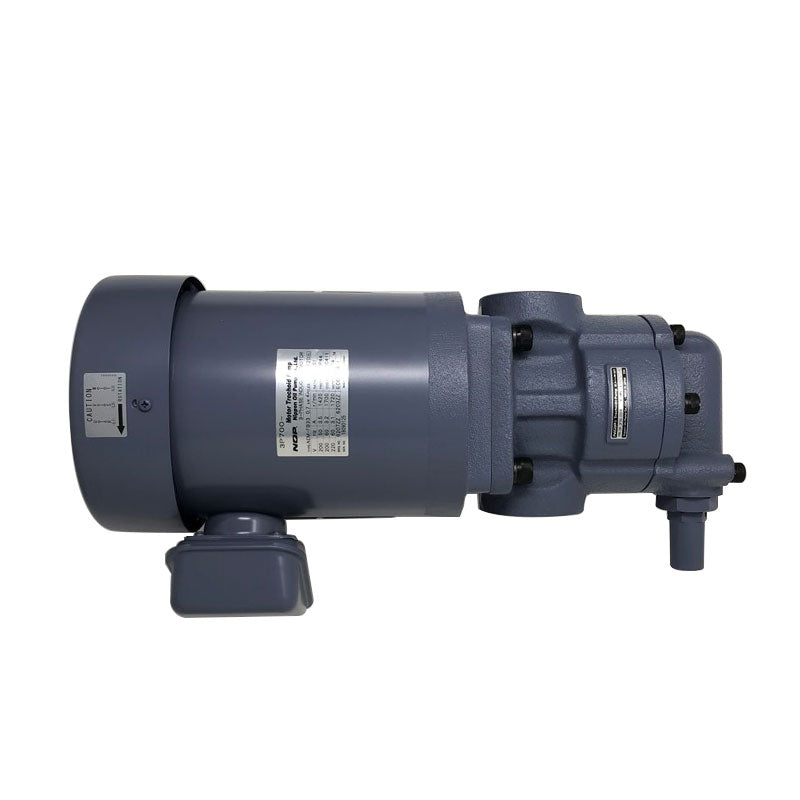

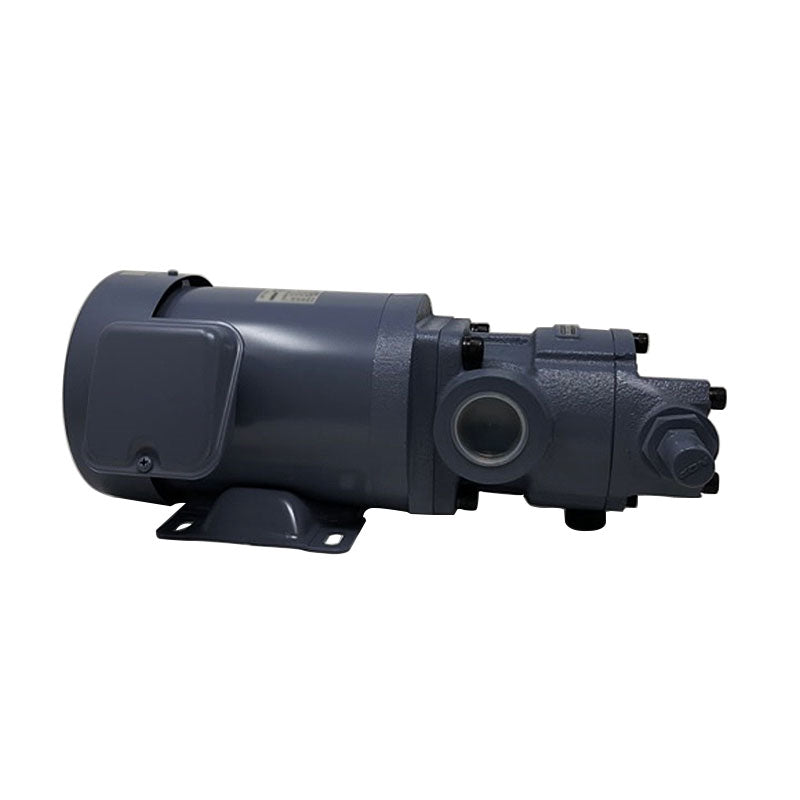

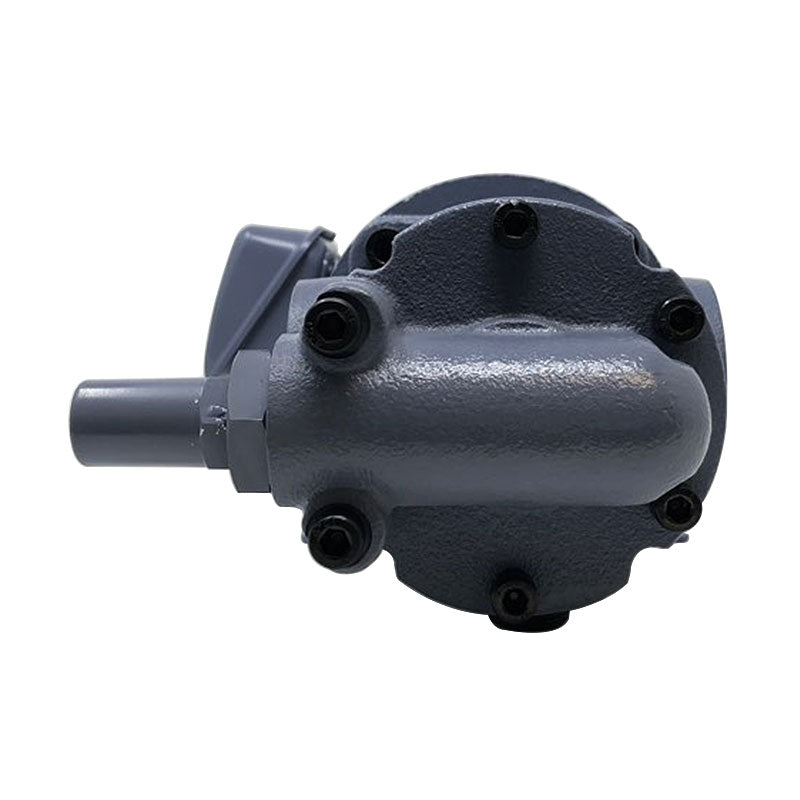

NOP Motor T-ROTOR Pump 3P700-320EVB
Brand: Kwangrim
SKU:
3P70032EVB
Availability:
In stock
$2,080.00
NOP Motor T-ROTOR Pump 3P700-320EVB
$2,080.00
Product Description
-
AMTP-LN type is low noisy structure pump, it is very compact, and it is easy to assemble and dismantle between pump and motor.
-
This pump has a relief valve to control the pump pressure so that can avoid the load in motor and pump operation.
-
The pump is used the circulating system of spindle oil in machine, transferring lubrication system.
Product Specifications
| AMTP-216LNVT Specifications | ||
|---|---|---|
| AMTP-216LNVT | ||
| Discharge Volume | 24.3 min | |
| Maximum Pressure per Motor Out-put | 200W | - |
| 400W | 0.6 Mpa | |
| 750W | 0.6 Mpa | |
| 60 Hz 4p (1,800 rpm) | ||
| Discharge Volume | 29.1 min | |
| Maximum Pressure per Motor Out-put | 200W | - |
| 400W | 0.6 Mpa | |
| 750W | 0.6 Mpa | |
External Dimensions
| AMTP-216 Specifications | ||
|---|---|---|
| Type | AMTP-216 LNVA | |
| A | 27 | |
| C | 125 | |
| D In/Out-let (Port Dia.) | PT 3/4 | |
| Motor Type | 400W | |
| Phase 3, Poles 4p | Motor Out-put | 0.4 kW |
| Motor Speed | 1,420 rpm | |
| Frequency | 50 Hz | |
| Rated Voltage | 200/380 V | |
| Current | 2.4/1.5 A | |
| Type | AMTP-216 LNVB | |
| A | 27 | |
| C | 89 | |
| D In/Out-let (Port Dia.) | PT 3/4 | |
| Motor Type | 400W | |
| Phase 3, Poles 4p | Motor Out-put | 0.4 kW |
| Motor Speed | 1,720 rpm | |
| Frequency | 60 Hz | |
| Rate Voltage | 200/220/380 V | |
| Current | 2.3/2.3/1.4 A | |
| E | F | G | H | I | J1 | J2 | K | L | M | N | Q | R |
| 112 | 90 | 65 | 145 | 67.5 | 20 | 7 | 186 | 217 | 143 | 110 | 128 | 31 |
Brand
Kwangrim
Availability
In Stock
