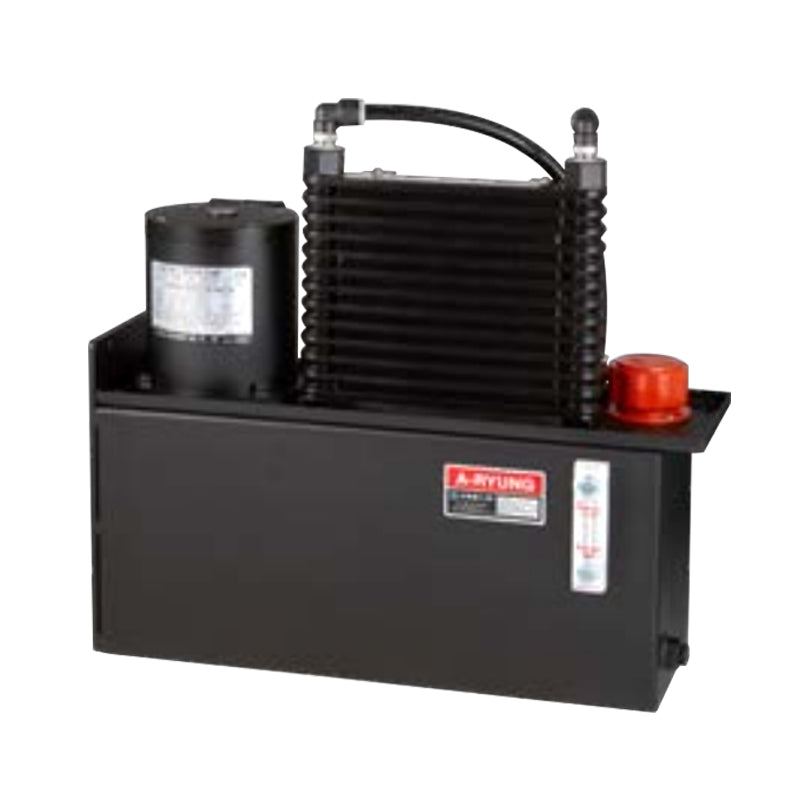

A-Ryung Fan Cooler Unit AFC-200-13MSFVB-T14
Brand: A-Ryung
SKU:
AFC20013MSFVBT14
Availability:
In stock
Part : Fan Cooler Unit
Model : AFC-200-13MSFVB-T14
Manufacturer : A-Ryung
Product Description
Excellent heat exchange efficiency by applying a fan cooler and a small circulation pump as an air-cooled type.
Easy to use and compact in appearance, it is suitable for machine tools and various industrial machines.
Product Specifications
Pump Spec?
| Type | 1500 rpm (50Hz, 4p) | 1800 rpm (60Hz, 4p) | INLET | OUTLET | ||||
| Discharge INLET OUTLET Volume (?/min) |
Max? Pressure (MPa) |
Discharge INLET OUTLET Volume (?/min) |
Max? Pressure (MPa) |
|||||
| 100W | 200W | 100W | 200W | |||||
| 12MSFVB | 3.7 | 0.5 | 0.5 | 4.5 | 0.5 | 0.5 | PT 1/4? | PT 1/4? |
| 13MSFVB | 6.7 | 0.5 | 8.1 | 0.5 | PT 3/8? | PT 3/8? | ||
Motor Spec?
| Motor Output ( W ) |
Frequency (Hz) |
Voltage (V) |
Current (A) |
Motor speed (rpm) |
Phase (?) |
Poles (P) |
| 100W | 50/60 | 200 | 0.65 | 1430 | 3 | 4 |
| 60 | 220 | 0.6 | 1720 | |||
| 200W | 50/60 | 200 | 1.3 | 1430 | 3 | 4 |
| 60 | 220 | 1.1 | 1710 |
| Type | Tank Capacity ( ? ) |
Fan Motor | ||||
| Motor Output | Phase | Frequency | Voltage | Current | ||
| AFC-100-12MSFVB-T10 | 10 | 48W | 1 ? | 50/60 Hz | 220~240V | 0.22 A |
External Dimensions
