Aryung Air Drip Lubricator ADLP

Aryung Air Drip Lubricator ADLP

Brand: Aryung
SKU: ADLP
Availability: Backorder (estimated delivery: 30 Days)
Product type: Lubrication Pump
Request for Quote

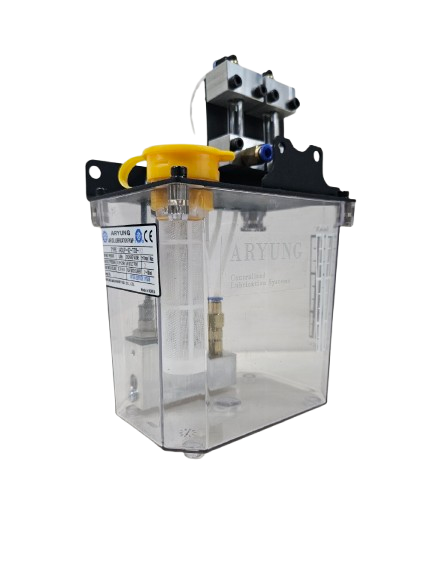

The Aryung ADLP is an air-driven drip lubricator that sends fine oil drops on an air stream to two points, such as guideways or chains. It has a 2 L tank and a float sensor that signals low oil.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Discharge 5 to 6 drops per 10 s
Air pressure 4 bar
Mixing air pressure 1.3 to 2.0 bar
Tank 2.0 L
Float sensor Normally closed, 12 to 24 V DC, 2 to 100 mA
Outlets 2

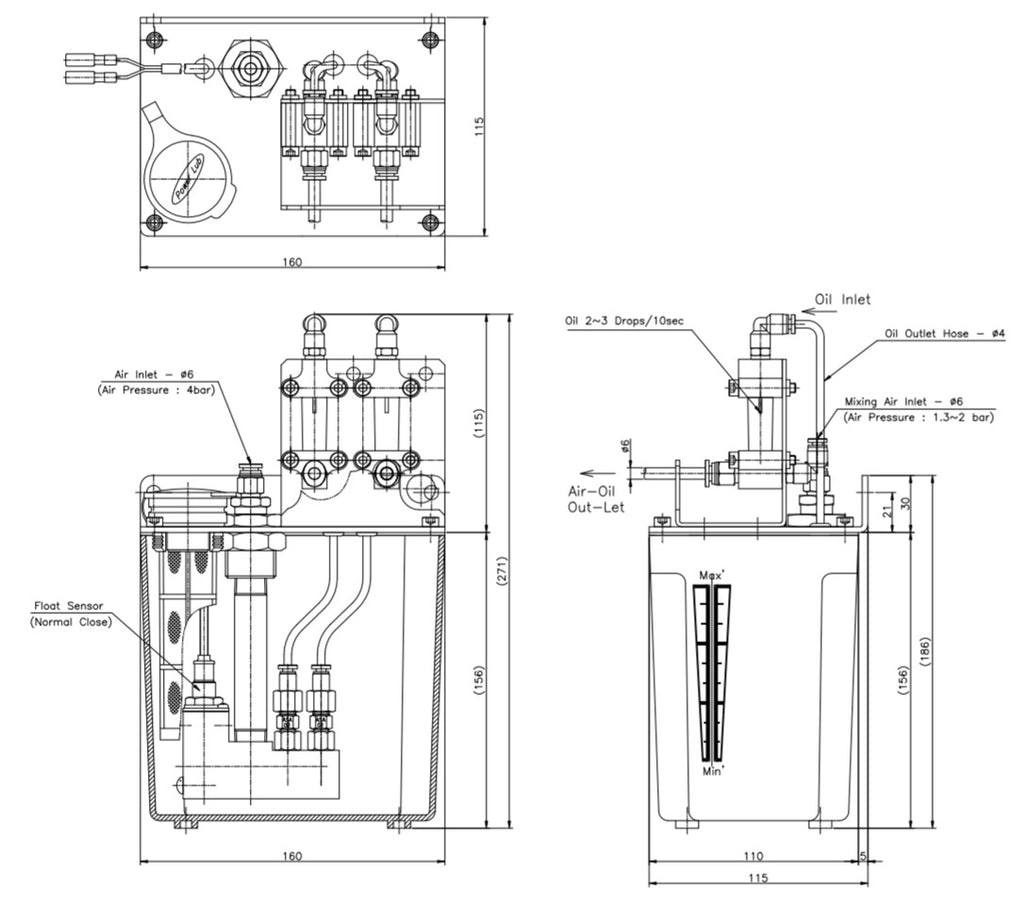

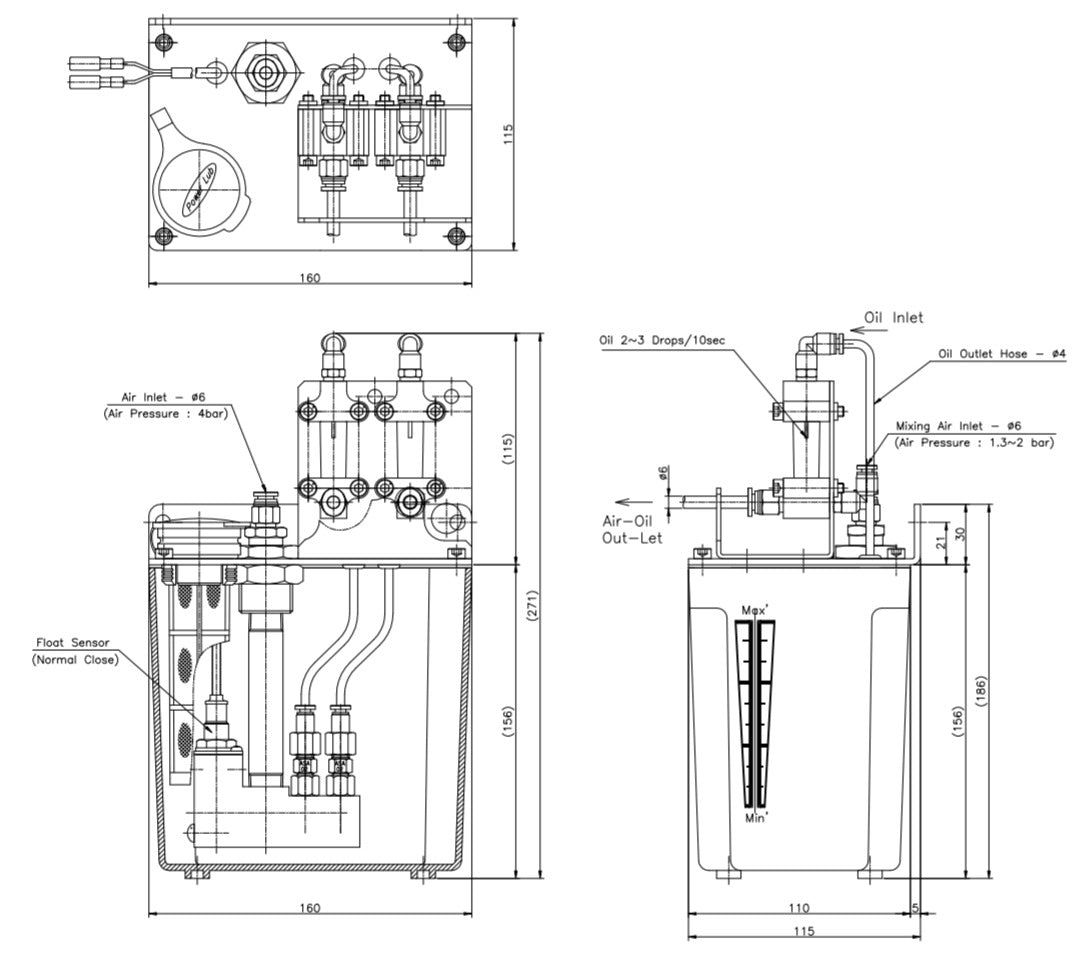

ADLP drawing

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
