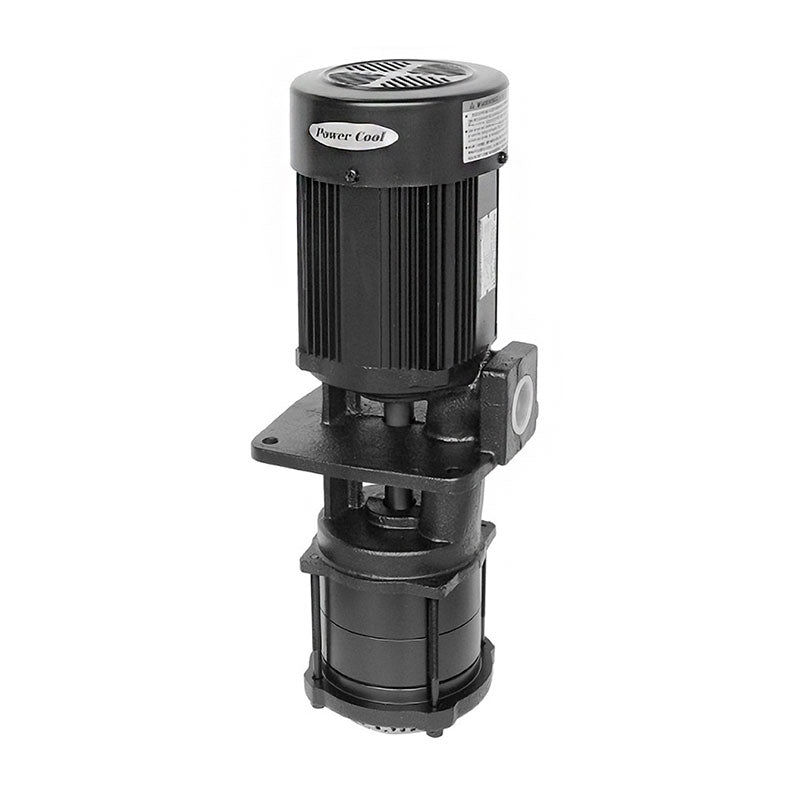

Aryung Coolant Pump ACP-900MF

Product Description

The ACP-HMFS series is a multi-staged high head pump which uses a large quantity of oil flow for large machines with high precision & efficiency. This pump is designed so that heat from the motor will not to transfer directly to the pump to maintain the oil at a constant temperature.

Product Specifications

External Dimensions

Performance Range

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.
