Aryung AMTP-CH high pressure motor pump
  • Aryung AMTP-CH high pressure motor pump

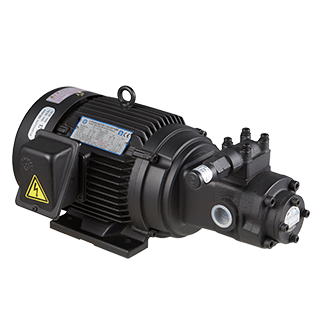

Aryung High Pressure Motor Pump AMTP-4000-T320-CH-3.5 (50/60 Hz)

Aryung High Pressure Motor Pump AMTP-4000-T320-CH-3.5 (50/60 Hz)

Brand: Aryung
SKU: AMTP4000T320CH3.5
Availability: Backorder (estimated delivery: 30 Days)
Product type: Trochoid Oil Pump
Request for Quote

The Aryung AMTP-4000-T320-CH-3.5 is a 4.0 kW high-pressure motor T-rotor pump unit for through-spindle and high-pressure coolant delivery on machine tools. It is rated for 3.5 MPa (35 bar) working pressure and pairs with an Aryung ARCF-25B cyclone filter. Noise is under 80 dB(A).

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Motor 4.0 kW
Frequency 50 Hz or 60 Hz
Voltage 200/380 V (50 Hz), 220/380 V (60 Hz)
Current 15.2/8.8 A (50 Hz), 15.4/8.4 A (60 Hz)
Working pressure 3.5 MPa (35 bar)
Working flow (50 / 60 Hz) 18.0 / 20.0 L/min
Max flow (50 / 60 Hz) 38.0 / 41.5 L/min
Standard test nozzle Ø3.0
Relief valve flow range 0 to 100 L/min
Inlet / outlet port 1" / 1"
Matching cyclone filter ARCF-25B
Noise Under 80 dB(A)

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.

Brand Aryung
Availability Backorder
Estimated Delivery 30 Days
