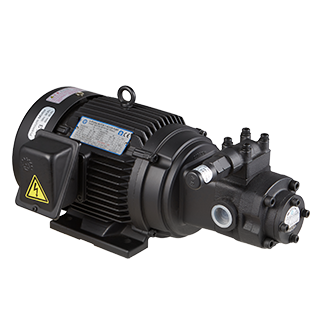

Aryung High Pressure Motor Pump AMTP-4000-T330-CH-4.0 (50 Hz)

Aryung High Pressure Motor Pump AMTP-4000-T330-CH-4.0 (50 Hz)

Brand: Aryung
SKU: AMTP4000T330CH4.0
Availability: Backorder (estimated delivery: 30 Days)
Product type: Trochoid Oil Pump
Request for Quote

The Aryung AMTP-4000-T330-CH-4.0 is a 4.0 kW high-pressure motor T-rotor pump unit for through-spindle and high-pressure coolant delivery on machine tools. It is rated for 4.0 MPa (40 bar) working pressure and pairs with an Aryung ARCF-32B cyclone filter. Noise is under 80 dB(A).

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Motor 4.0 kW
Frequency 50 Hz
Voltage 200/380 V
Current 15.2/8.8 A
Working pressure 4.0 MPa (40 bar)
Working flow (50 / 60 Hz) 23.5 / 26.0 L/min
Max flow (50 / 60 Hz) 52.5 L/min
Standard test nozzle Ø3.0
Relief valve flow range 0 to 100 L/min
Inlet / outlet port 1 1/4" / 1"
Matching cyclone filter ARCF-32B
Noise Under 80 dB(A)

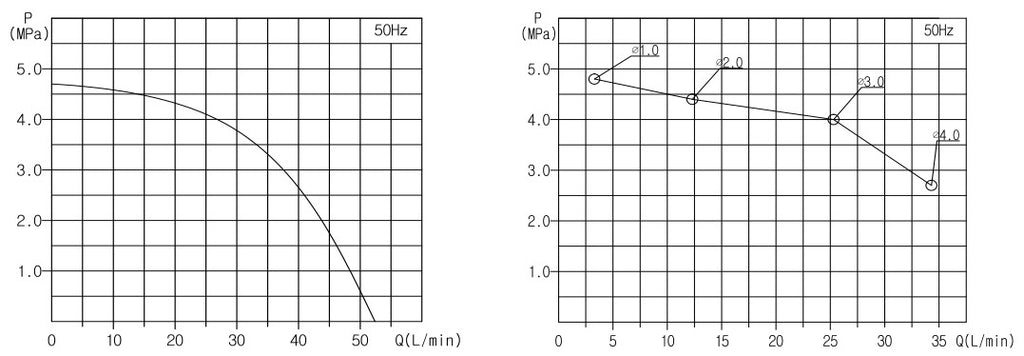

Performance curve

Aryung AMTP-4000-T330-CH-4.0 performance curve

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
