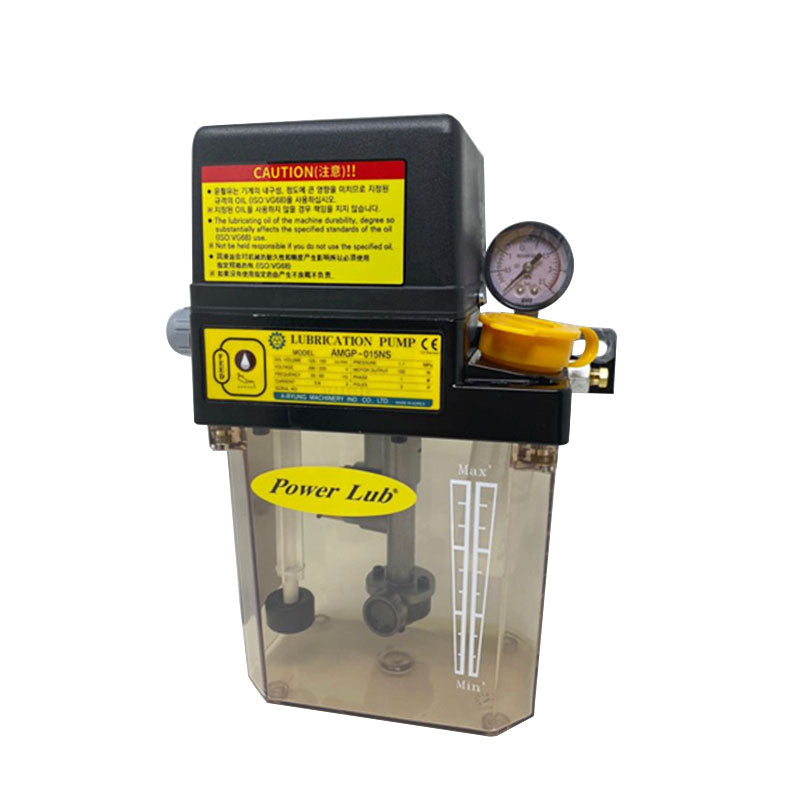

Aryung Lubrication Pump AMGP-015NS
Brand: Aryung
SKU:
AMGP-015NS-110V
Availability:
In Stock (ships from Chicago in 1-2 business days)
$490.00
Aryung Lubrication Pump AMGP-015NS
Regular price
$490.00 USD
Regular price
Sale price
$490.00 USD
Unit price
per
Aryung Lubrication Pump AMGP-015NS
$490.00
Product Description
The AMGP-01NS/015NS lubrication pump is a resistive and intermittent pump with a measuring valve.
• This pump has a float switch and a pressure switch inside to check the oil shortage and connect the outside terminal on the main machine to monitor the working conditions.
• As the pump is installed with a feed button switch inside of the pump, it is easy to remove the air and operate manually.
• This pump is mainly used for machine tools, printing, foods, injection machines, presses, and various industrial machines.
Product Specifications
| Type | Discharge volume | Working pressure | Pressure range | Reservoir capacity | Viscosity | Outlet | Net weight | Motor Output | Phase Poles | Frequency | Rated voltage | Current |
| AMGP 01NS/15NS | 125/150 cc/min | 1.7 Mpa | 0.2~1.7 Mpa | 1.8 L | 30~500 cSt | 1/4( Ø6) PT | 3 Kg | 25W | 1Ø/2P | 50/60 Hz | 110V / 220V | 1.7/0.8 1.8/0.9 |
As this pump operates, high heat can occur in the motor. The motor stops automatically if high motor heat occurs, causing the interval time to be shorter than discharge time. The pump works normally after motor cooling.
Circuit Diagram & Electrical Connections
External Dimensions
