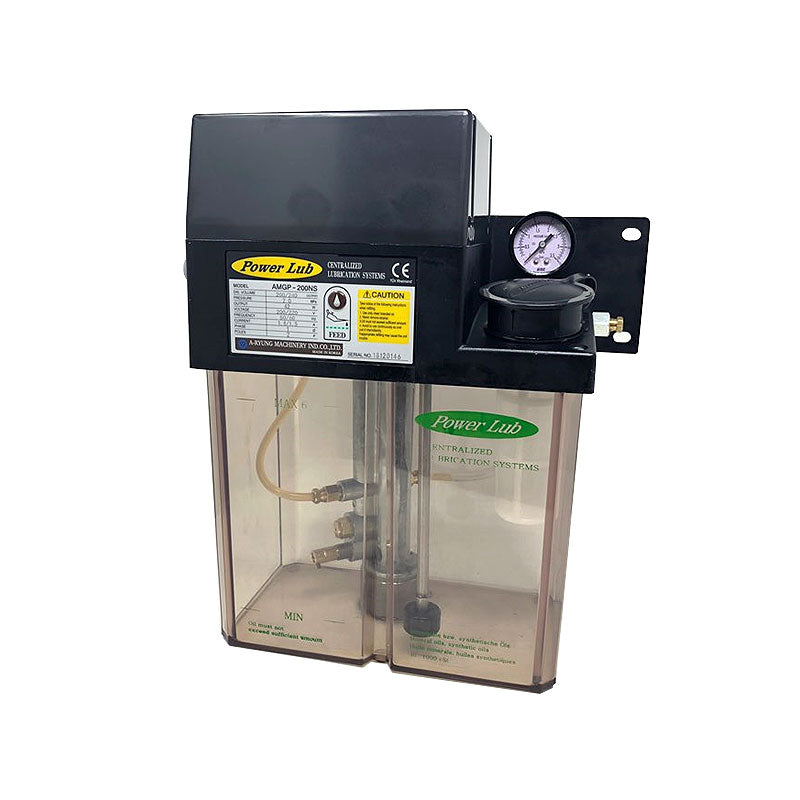

Aryung Lubrication Pump AMGP-200NS-T06
Brand: Aryung
SKU:
AMGP-200NS-T06-110V
Availability:
In Stock (ships from Chicago in 1-2 business days)
$640.00
Aryung Lubrication Pump AMGP-200NS-T06
Regular price
$640.00 USD
Regular price
Sale price
$640.00 USD
Unit price
per
Aryung Lubrication Pump AMGP-200NS-T06
$640.00
Product Description
• AMGP-200NS pump is a resistive and intermittent pump, using a measuring valve (ARD-340,350 and PVO type).
• This pump has a float switch and pressure switch inside to check the oil level and connect to the outside terminal on the main machine to monitor the working conditions.
• A feed button switch inside of the pump makes it is easy to remove air and operate the pump manually.
• This pump is mainly used in machine tools, printing, food manufacturing, injection machines, press and various industrial machines.
Product Specifications
| Type | Discharge volume | Working pressure | Pressure range | Reservoir capacity | Viscosity | Outlet | Net weight | Motor Output | Phase Poles | Frequency | Rated voltage | Current |
| 200NS-T06 | 200/400 cc/min | 2 Mpa | 0.8~2.5 Mpa | 6 L | 30~100 cSt | 1/4( Ø6) PT | 5.8 Kg | 42W | 1Ø/2P | 50/60 Hz | 110V / 220V | 4.8/2.1, 5.0A/1.8 |
External Dimensions
Circuit Diagram & Electrical Connections
High heat may occur in the motor while it's running. The motor stops automatically when this occurs. The pump will work normally once the motor has cooled.
