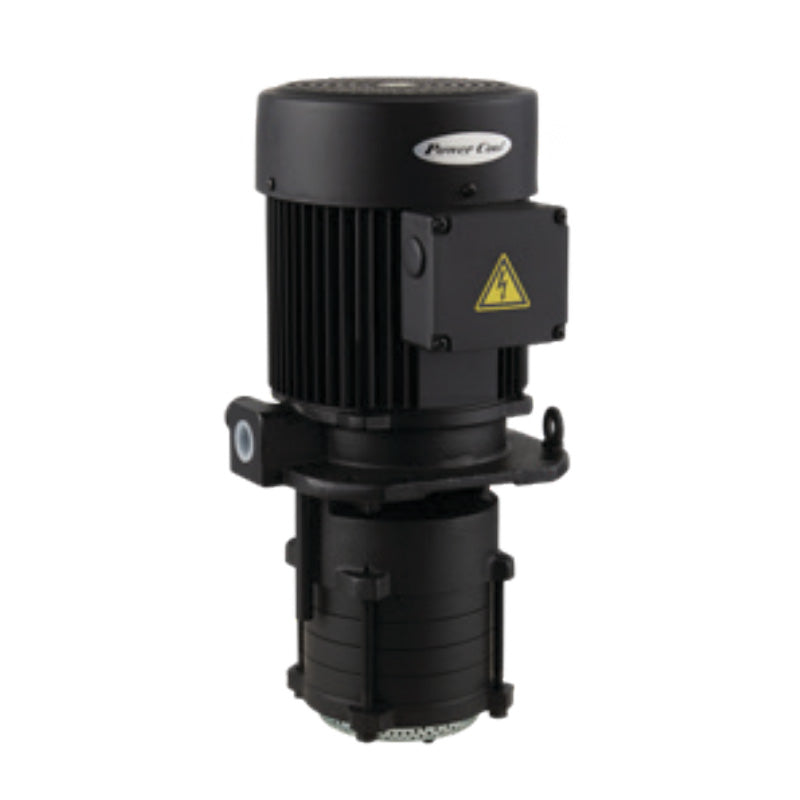

Aryung Coolant Pump ACP-1800HMFS 60
Brand: Aryung
SKU:
ACP1800HMFS60
Availability:
In Stock (ships from Chicago in 1-2 business days)
Part : Coolant Pump
Model : ACP-1800HMFS 60
Manufacturer : A-Ryung
Product Description
ACP-HMFS series pumps are high head multi-staged high pump &used large quantity of ol flow machines with high precision & efficiency.
This pump is designed not to transfer the temperature of the motor directly to the pump, so the oil temperature can stay constant.
Product Specifications
| Specifications | |||
|---|---|---|---|
| Type | ACP-1800HMFS 60 | ||
| Pump | Head | 40 | 55 |
| Discharge volume (/min) | 30 m | ||
| In-let & Out-Let | 3/4 | ||
| Immersion depth(mm) | 190 | ||
| Motor | Out-put | 1800W | |
| FrequencyVoltage | 50 Hz | 60 Hz | |
| Voltage | 200V/380V/415V | 220V/380V/440V | |
| Current | 6.6A/3.8A/3.5A | 7.2A/4.2A/4.0A | |
| Weight | 29 kg | ||
External Dimensions
Performance Range
The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.
| TYPE? | L | L1? | L2 | L3 | T4 | TL | ?R1 | PE |
| 1800HMFS 60 | 190 | 25 | 219 | 30 | 150 | 462 | 170 | PS 3/4 |
