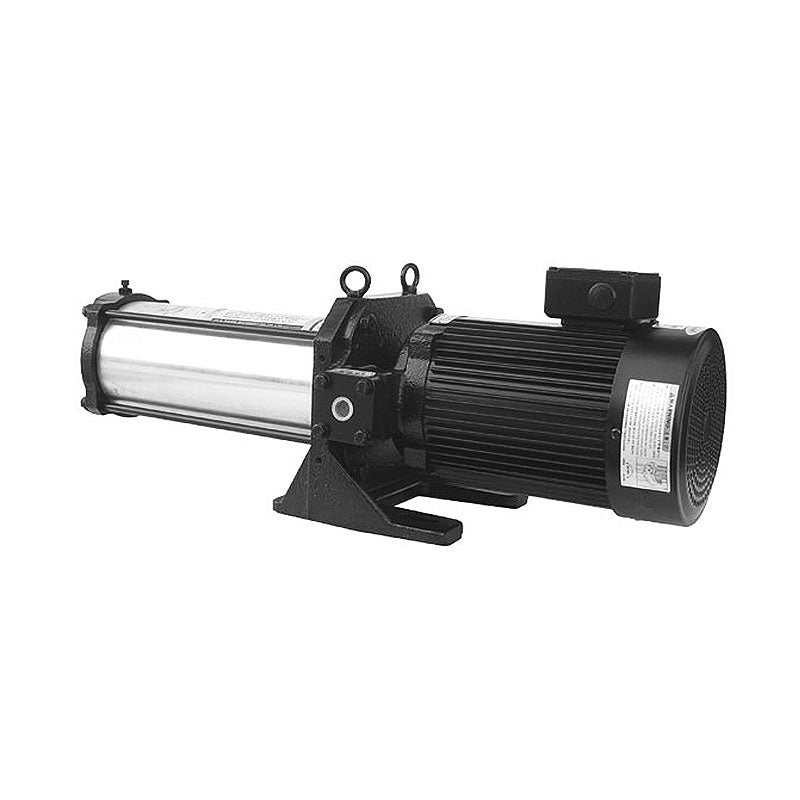

A-Ryung Coolant Pump ACP-4000HMFD 180H

Part : Coolant Pump

Model Number : ACP- 4000HMFD 180H

Manufacturer : A-Ryung

Product Description

The ACP-HMFD series pumps are high-head, multi-staged centrifugal pumps designed for large machines requiring high precision and efficiency. These pumps ensure that the motor's temperature does not transfer to the pump, maintaining a constant oil temperature.

Product Specifications

Specifications
Type ACP-4000HMFD 180H
Pump Discharge Volume 20 /min
Head 125/180 m
In-let & Out-let 1 1/4 PS
Immersion Depth 325 mm
Motor Out-put 4000 W
Frequency Voltage 50/60 Hz
Voltage 220/380/440 V
Current 15.4/8.9/8.5 A
Weight 64 kg

External Dimensions

ACP-

Performance Range

ACP-

The liquid level should be maintained between the indicated limit lines on the pump body. The maximum liquid level should be kept below 20 mm from the tank top to prevent dispersion. If the liquid level is too low, it can cause noise and reduce performance. The discharging volume varies with liquid viscosity. High viscosity increases motor heat, so cutting oil viscosity should be kept under 32 cSt. This pump cannot discharge if there is pipe resistance when a check valve is installed.

TYPE L L1 L2 L3 TL PE
400HMFD 180H 358 33 286 309 715 PS 3/4
