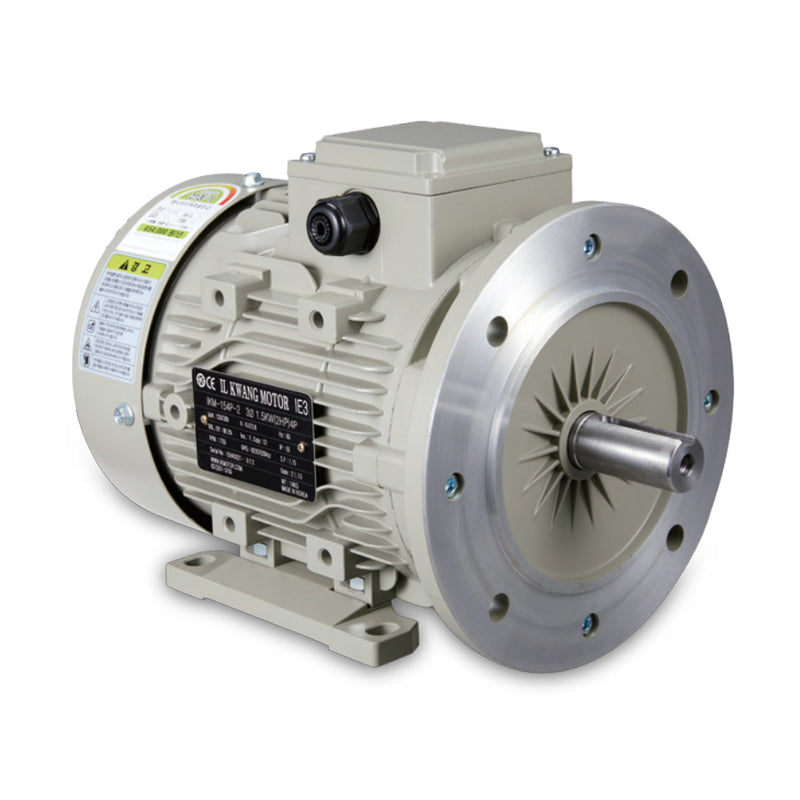

IK ELECTRIC IEC 71 Frame Aluminum Metric Motor, B35 Horizontal Vertical , Single-Phase, 0.5hp, 60 Hz, 220V, 1800 RPM, TEFC
  • IK ELECTRIC IEC 71 Frame Aluminum Metric Motor, B35 Horizontal Vertical , Single-Phase, 0.5hp, 60 Hz, 220V, 1800 RPM, TEFC
IK ELECTRIC IEC 71 Frame Aluminum Metric Motor, B35 Horizontal Vertical , Single-Phase, 0.5hp, 60 Hz, 220V, 1800 RPM, TEFC

IK ELECTRIC IEC 71 Frame Aluminum Metric Motor, B35 Horizontal Vertical , Single-Phase, 0.5hp, 60 Hz, 220V, 1800 RPM, TEFC

Brand: IK Electric
SKU: B35IE104kW012HP4P
Availability: In stock
Request for Quote

Part : IK Single-phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor

Type: B35 Horizontal Vertical type

Model Number: IE1, 1Φ  0.4Kw (1/2HP)

RPM : 1,800

Pole : 4

Voltage : 220V

Hertz : 60 Hz

IP rating : 55

Manufacturer : IK ELECTRIC

UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715

Product Description

IEC 71 frame single-phase IEC metric general purpose AC motors have a 14mm diameter, 30mm length shaft whose center is 71mm above the base mounting surface. IEC71 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.

B35 Horizontal Vertical Type IK Hydraulic Unit Motor?

? Condenser Running

? Single-Phase TEFC Standard Motor

Rigid and Durtors

? Condenser Running
? Condenser Starting & Running

?

POWER
Single-Phase, AC(220V), 60Hz

Product Specifications

Dimensional drawing

IK

Frame Output Dimension(mm) Bearings
Size (kW) Overall DE Shaft extension Base
71M 4P S(Hole) PCD M N H C HA LA L X T D E F FA G A B AB BA K1 K2 DE ODE
0.4 10 130 110 160 71 45 171 180 237 142 3 14 30 5 25 3 112 90 130 105 7 10 6203ZZ 6202ZZ

Brand IK Electric
Availability In Stock
Estimated Delivery 28 Days
