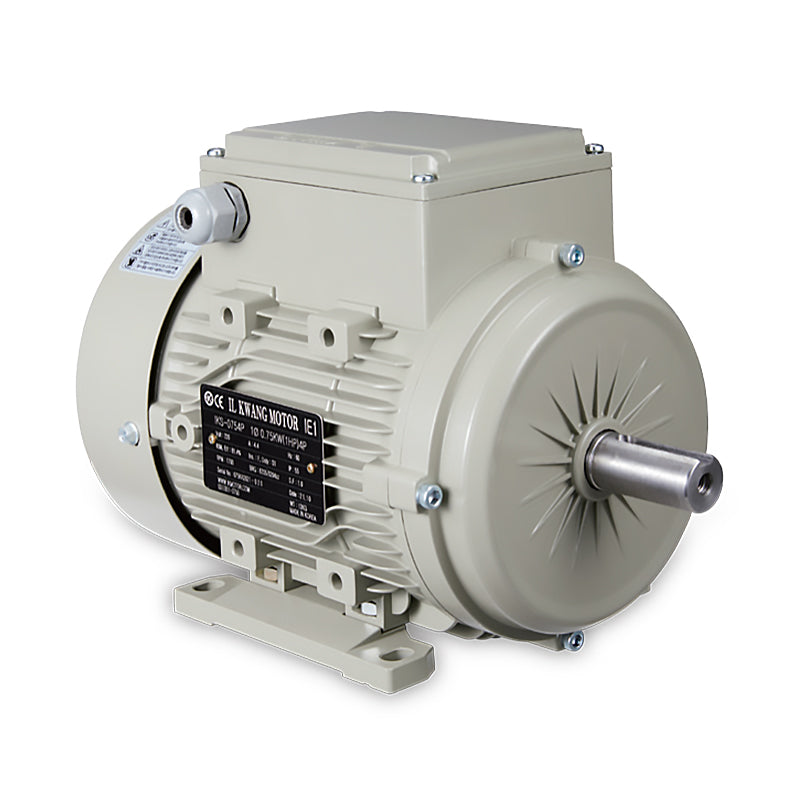

IK ELECTRIC IEC 71 Frame Aluminum Metric Motor, B3 Horizontal, 1-Phase, 0.25hp, 60 Hz, 220V, 1800 RPM, TEFC
Brand: IK Electric
SKU:
B3IE104kW012HP4P
Availability:
In Stock (ships from Chicago in 1-2 business days)
Part : IK Single phase TEFC(Totally Enclosed, Fan-Cooled) General Purpose Motor
Type: B3 Horizontal type
Model Number: IE1, 1Φ 0.4Kw (1/2HP) 4P 60Hz
RPM : 1,800
Pole : 4
Voltage : 220V
Hertz : 60 Hz
IP rating : 55
Manufacturer : IK ELECTRIC
UL Certificate Number : UL-US-247393-0 (US), UL-CA-2421468-0 (Canada) / UL Report Reference : E530774-20240715
Product Description
IEC 71 frame single-phase IEC metric general purpose AC motors have a 14mm diameter, 30mm length shaft whose center is 71mm above the base mounting surface. IEC71 motors are commonly used outside U.S. countries to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.
B3 Horizontal Type IK Hydraulic Unit Motor?
? Condenser Running
? Single-Phase TEFC Standard Motor
Rigid and Durtors
? Condenser Running
? Condenser Starting & Running
?
POWER
Single Phase, AC(220V), 60Hz
Product Specifications
Dimensional drawing
| Frame | Output | Dimension(mm) | Bearings | ||||||||||||||||
| Size | (kW) | DE Shaft extension | Base | ||||||||||||||||
| 71M | 4P | H | C | L | HA | X | D | E | F | FA | G | A | B | AB | BA | K1 | K2 | DE | ODE |
| 0.4 | 71 | 45 | 237 | 171 | 142 | 14 | 30 | 5 | 25 | 3 | 112 | 90 | 130 | 105 | 7 | 10 | 6203ZZ | 6202ZZ | |
