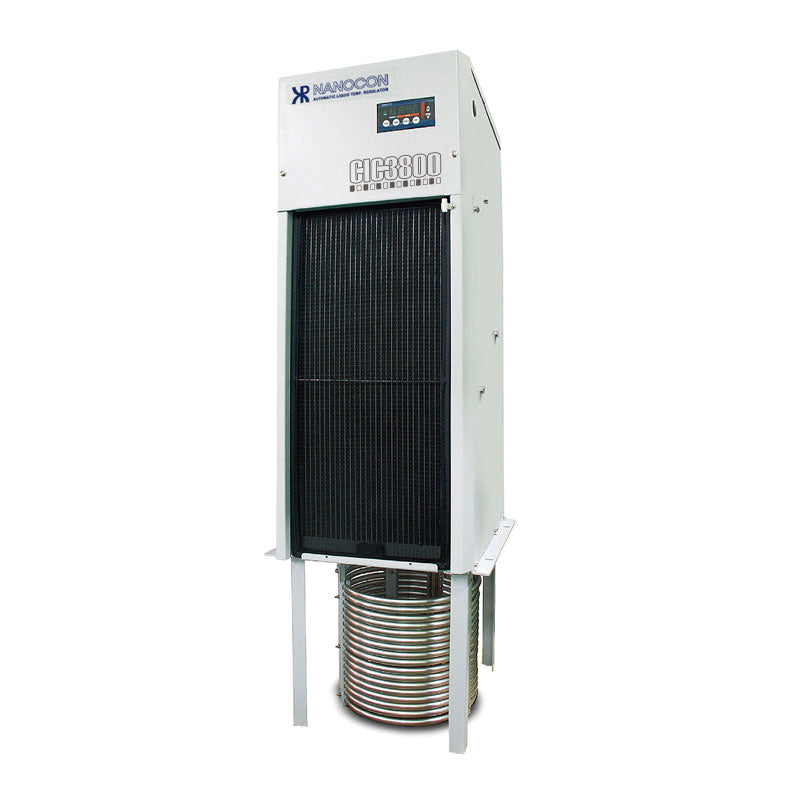

Kwangrim NANOCON Coolant Chiller CIC 3800E-C
  • Kwangrim NANOCON Coolant Chiller CIC 3800E-C
Kwangrim NANOCON Coolant Chiller CIC 3800

Kwangrim NANOCON Coolant Chiller CIC 3800

Brand: Kwangrim
SKU: CIC-3800
Availability: In Stock (ships from Chicago in 1-2 business days)
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Kwangrim Coolant Chiller CIC 3800E-C

Manufacturer: Kwangrim

Cooling Capacity: 13,700/16,500 (W) (50/60 Hz)

Compatible Machine Models : Doosan,DN Solutions, WIA, FFGDMC

Cross-Compatible Brands & Models

placeholder

Product Description

Kwangrim Coolant Chiller CIC 3800E-C is the High precision temperature control refrigerant-type coolant chiller

CIC series coolant chillers use a refrigerant-type heat exchange method to maximize heat exchange rate and efficiency to control the coolant temperature. The SUS coil is made of rust resistant stainless steel. The CIC series coolant chillers make it easy to control the temperature whether the machine is lightly or heavily loaded.

CIC 3800E-C Coolant Chiller Series Options

STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and costant temperature control is possible with one setting.

Heater: With heater attached, warning-up time for a machine is reduced.

Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.

Tank: Tank can be attached with various volume selection.

CIC

NANOCON Drawings

CIC

Product Specifications

Specifications

Kwangrim Oil Chiller CIC 3800E-C
Dimension 740 x 740 x 2005 (W x D x H)
External Color BLACK
Cooling Capacity

13600/16300 (W) (50/60 Hz)
Impressed Power Source

AC200V 50 / 60Hz, AC220V / 60Hz
Power Capacity 24.0A / 9.1KVA
Compressor Capacity 5460W
Condenser Air cooling (ALUMINUM CONDENSER)
FAN MOTOR 200W x 2
Heat Exchanger Plate Cooler
Usage Temperature 5 ~ 45 ?
Temp. Control

E : ?1 ? ~ 2 ? (Does not include transient deviation)
Refrigerant R407C
Temp. Controller DIGITAL PID Controlled Controller

CICChiller Dimension Drawings

CIC

Brand Kwangrim
Availability In Stock
Estimated Delivery 60 Days
