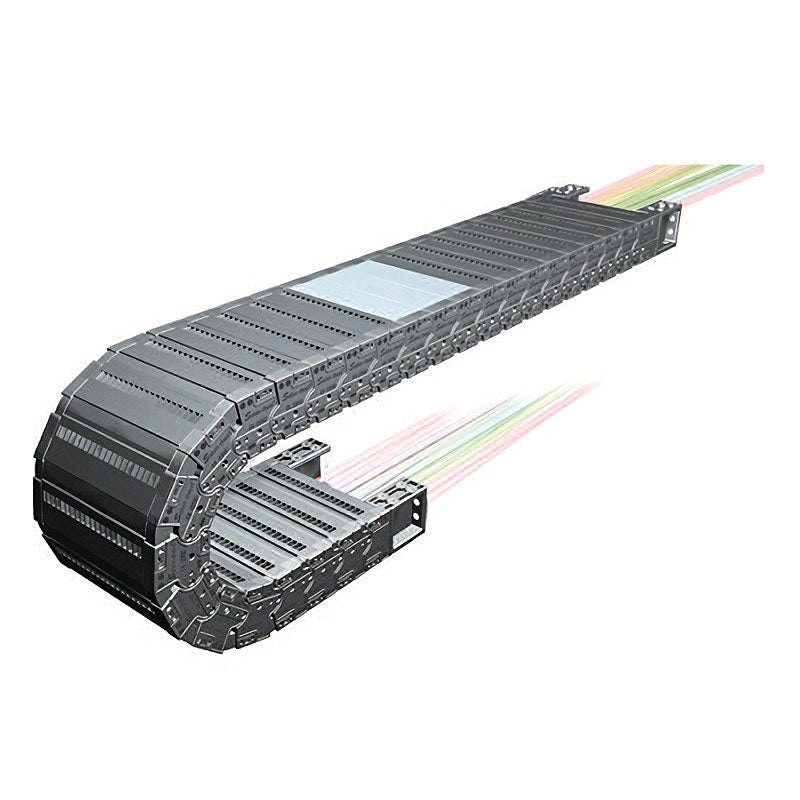

CP System Sabin Chain M43041516, enclosed type with 23 links, inside width of 200, and bending radius of R135. Suitable for high-speed and high-temperature applications
  • CP System Sabin Chain M43041516, enclosed type with 23 links, inside width of 200, and bending radius of R135. Suitable for high-speed and high-temperature applications
  • CP System Sabin Chain M43041516, enclosed type with 23 links, inside width of 200, and bending radius of R135. Suitable for high-speed and high-temperature applications
CP System Sabin Chain NSB 060E.200.R135/F-1380L

CP System Sabin Chain NSB 060E.200.R135/F-1380L

Brand: CP System
SKU: M43041516
Availability: In Stock (ships from Chicago in 1-2 business days)
$1,630.00
CP System Sabin Chain M43041516, enclosed type with 23 links, inside width of 200, and bending radius of R135. Suitable for high-speed and high-temperature applications
CP System Sabin Chain NSB 060E.200.R135/F-1380L
$1,630.00

Product Description

  Chain Material: CPS-amide with glass fiber reinforced, UL94-HB

• Speed: 5m / sec

• Temperature: -30°C ~ +130°C

• Acceleration: 15m/2s

• Other installation Length:
   Vertical curve above= max 2.0m ~ 6.0m
   Vertical curve below= max 40m ~ 120m
   Side Mounted, Unsupported=1.0m ~ 3.0m

• Applications: Sabin Chain E can be found on car manufacturer's welding line, robot carriages and press lines and on any machine where excess material can damage your inserted cables.

Calculation of the chain length

CP

Product Specifications

CP

Chain Type A B C D Weight kg/m
Width (Outer) Height (Outer) Frame Height (Inner)
nsb 060E 190 82 150 56 4.86

CP

Bending radius (R) Lp (Loop Length) LP (Loof Projection) H (Moving Height)
135 885 399 377

CP

CP

Chain Type C D E F G
FEB fix hole(inner) Frame FEB hole width FEB width GC hole width
nsb 060E 175 200 215 264 219
