DAHA Systems SH Pressure switch

Product Description

Safety Instruction

To use the product safely, always follow the Instructions below.

You must follow the instructions for use.

You must be familiar with the usage regulations and legal matters of each country before using it

Do not use beyond the specifications of the product. (pressure, force, temperature, other environment, etc.)

Before using the product, be sure to consider the surrounding environment (temperature, humidity, dust, etc.)

Do not use in places where there is a lot of vibration, shock, or adverse effects on the operation of the sensor.

The product must not be modified and used.

Remove all packing materials used during delivery and use them (laps, boxes, etc.)

?

When discarding, separate reusable parts and dispose of them.

Do not pull hard on the cable

Install the pressure sensor after removing the dust remaining in the pressure line and the pressure medium that can cause overpressure when tightening

When installing, be sure to tighten it using the spanner seat of the female screw part.

Do not do wiring work while electricity is running.

Do not repeatedly bend the cable, pull it, or apply force by placing heavy objects on top of it..

The product must not be modified and used

Do not use near places where strong high- frequency noise is generated

Do not use in locations with surge sources

Perform maintenance and inspection after turning off the supply power.

Please perform maintenance and inspection regularly.

?

Product Specifications

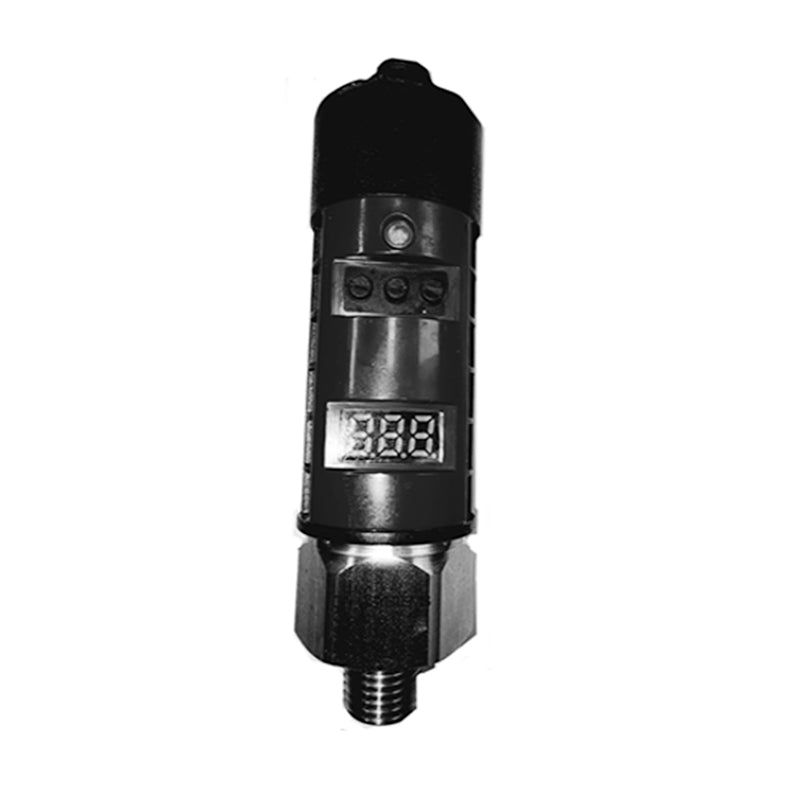

DAHA Systems SH Pressure sensor

Specification?

Enviromental Condition

Precautions when using with external devices

When using an external relay together with the SH Electrical Pressure Switch, the output signal and the COM (GRD) terminal are used because the SH Electrical Pressure Switch is a voltage output type

< Example of correct usage>
