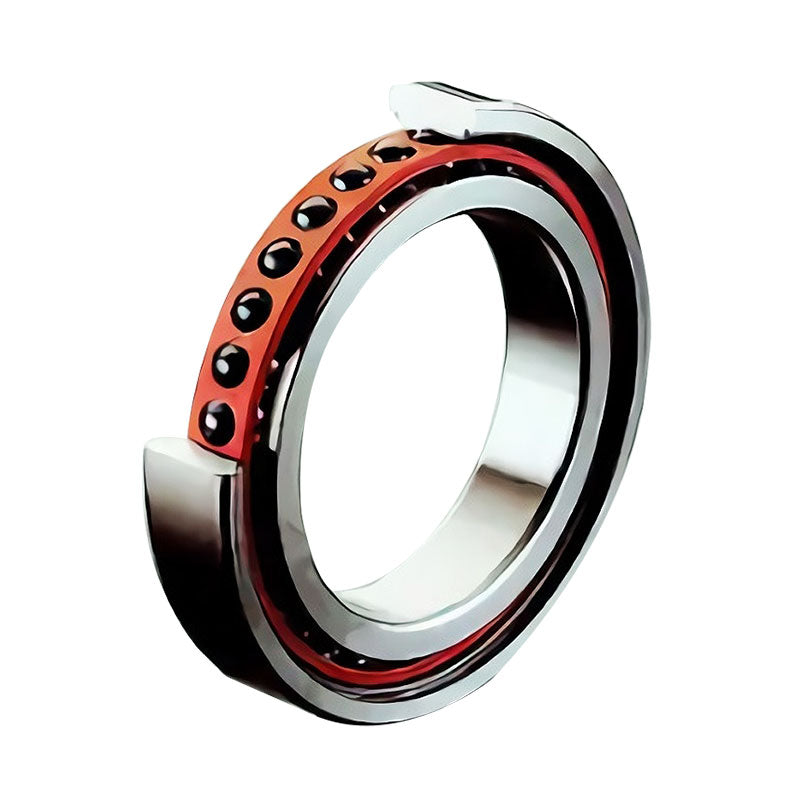

FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL
  • FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL
  • FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL
FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL

FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL

Brand: IndustryNest
SKU: 591100BA1002FA
Availability: Pre-order
$65.00
FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL
FAG Super Precision Single Row Angular Contact Bearing B7020C.T.P4S.UL
$65.00

Product Description

The FAG Super Precision Bearing range is designed for application on machine tools including spindles, ball screws, and rotary tables.

Thanks to the high performance standard of the existing product range, specific tailor-made solutions are rarely required.

Product Specifications

FAG

Specifications
Bearing No. B7020C.T.P4S.UL
Dimensions d 100 mm
D 150 mm
B 25 mm
r min 1.5 mm
r1 min 1.5 mm
Abutment Dimensions da h12 110 mm
Da H12 141 mm
ra max 1.5 mm
rb max 0.6 mm
Load Ratings Cdyn Kn 81.5
C0stat 81.5
Brand IndustryNest
Availability In Stock
